9556

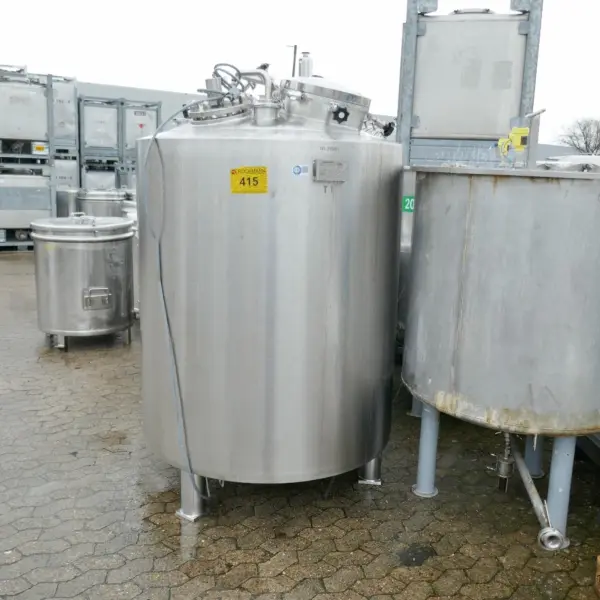

1000 liter heat-/coolable pressure tank, Aisi 316 with magnetic agitator
€17,500.00
incl. VAT
€20,825.00
Price per piece, excl. VAT
2 pieces on stock
Unterlagen vorhanden
General Information
location
Bremen
condition
used
Vessel
volume
1.000 liter
vacuum
1,0 bar
max. excess pressure
4,0 bar
max. allowable working temperature
150 °C
construction
standing
stand type
legs
quantity legs
3 Piece
double jacket
double jacket
available
Volume double jacket
72,0 liter
max. allowable working overpressure (dj)
6.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
150 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
mineral wool
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.100 mm
diameter outside
1.300 mm
cylindrical height
1.000 mm
total height
2.300 mm
Wall thickness lower bottom
6.6 mm
wall thickness cylinder
10 mm
wall thickness of upper bottom
6.3 mm
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents,various documents
manhole
in the upper bottom (Ø 400)
nameplate
technical equipment
spray ball
outlet
available
outlet
50 mm
latest application
Pharmacy
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material temperatur control system
AISI 316 (V4A) 1.4571
material legs
stainless steel
Agitator
power
1.1 KW
agitator
magnetic mixer
voltage
220/380 Volt
agitator positioning
lower bottom
agitator features
Various technical documents for the agitator available; The agitator in 1 tank is loose (see photos)
