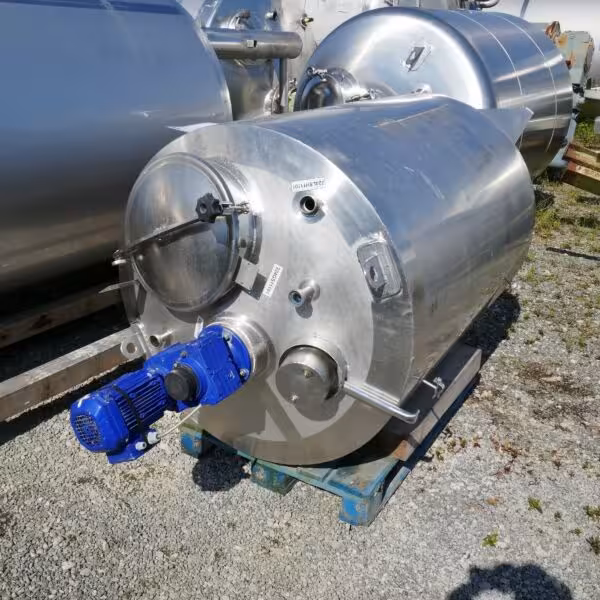

1000 Liter insulated agitator tank, Aisi 316 with blades agitator
€4,500.00
incl. VAT
€5,355.00
Price per piece, excl. VAT
1 on Stock
General Information
Manufacturer
Thrun Maschinen- und Behälterbau
location
Bremen
condition
used
Vessel
volume
1.000 liter
max. allowable working temperature
90 °C
construction
standing
stand type
legs height adjustable
quantity legs
3 Piece
Insulation
insulation
available
insulating jacket
hermetically welded
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
990 mm
diameter outside
1.120 mm
cylindrical height
1.430 mm
total height
3.100 mm
Equipment
manhole
in the upper bottom
technical equipment
ventilation, spray ball, crane eyes
outlet
65 mm
remarks
Diameter manhole approx. 420 mm; Insulation around the cylinder (small dents in the insulation jacket)
latest application
Dairy
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material legs
stainless steel
Agitator
manufacturer stirrer
PRG
power
0.75 KW
output speed
56 rpm
agitator
blade agitator
voltage
220/380 Volt
agitator positioning
eccentrically in the upper bottom
