9536

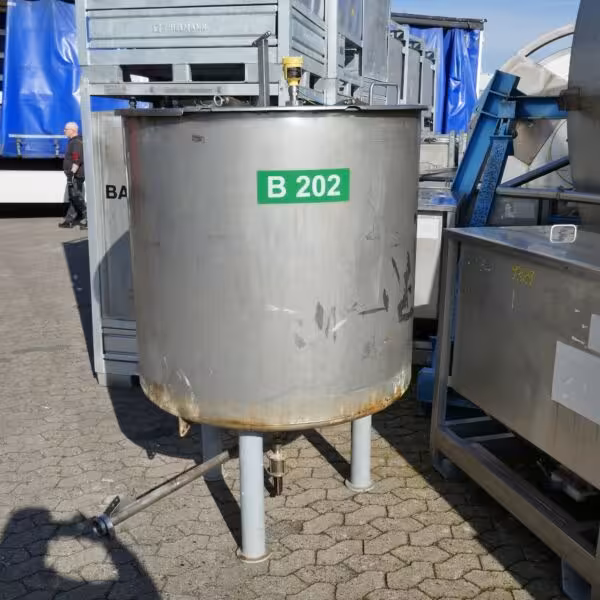

1000 liter tank, Aisi 304 with jet stream mixer
€4,200.00
incl. VAT
€4,998.00
Price per piece, excl. VAT
1 on Stock
General Information
location
Bremen
condition
used
Vessel
volume
1.000 liter
upper bottom
screwed cover with hinged segment
construction
standing
stand type
legs
quantity legs
3 Piece
Technical Characteristics
diameter inside
1.090 mm
cylindrical height
1.020 mm
total height
2.850 mm
Equipment
outlet
30 mm
notice
some residues of previous content
remarks
Slight differences in the design of the two tanks; Total height estimated (deviations possible); Agitator supports may need to be relined for installation; Diameter outlet end of 1 tank approx. 35 mm
latest application
Cosmetics
Material Composition
material in contact w/ medium
AISI304 1.4301
material legs
mild steel
Agitator
manufacturer stirrer
Ystral
power
3.3 KW
output speed
1430 rpm
agitator
jet stream mixer
voltage
400 Volt
EX-proof
motor is ex-proof according to the nameplate (due to the new ATEX-regulations the application in explosive areas is not permitted without modification/retrofitting)
agitator positioning
eccentrically in the upper bottom
