7932
10000 liter heat-/coolable tank with Ekato blade stirrer, Aisi 304
€7,900.00
incl. VAT
€9,401.00
Price per piece, excl. VAT
1 on Stock
General Information
location
Bremen
condition
used
Vessel
volume
10.000 liter
max. allowable working temperature
80 °C
construction
standing
stand type
legs
quantity legs
5 Piece
double jacket
double jacket
available
max. allowable working overpressure (dj)
2.0 bar
max. allowable working temperature (dj)
80 °C
Temperature control cylinder (dj)
squared half-coil
Insulation
insulation
available
Insulation material
mineral wool
material insulation jacket
mild steel galvanized
Technical Characteristics
diameter inside
2.390 mm
diameter outside
2.640 mm
cylindrical height
2.000 mm
total height
4.550 mm
Equipment
manhole
in the upper bottom (Ø 500)
technical equipment
crane eyes
outlet
available
notice
some residues of previous content
remarks
insulation jacket with dents and metal cutoffs; 1 bent connection in the upper bottom; slight metallic discolourations inside
latest application
seal manufacturing
Material Composition
material in contact w/ medium
AISI304 1.4301
material double jacket
AISI304 (V2A) 1.4301
material legs
stainless steel

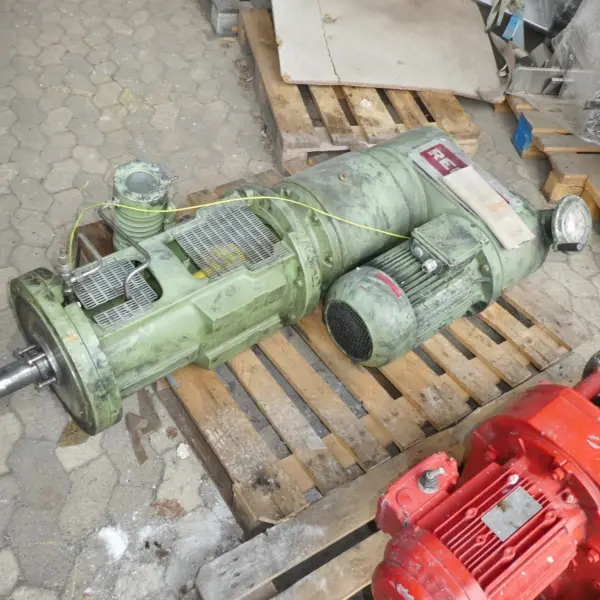

Agitator
manufacturer stirrer
Ekato
power
5 KW
output speed
55 - 136 rpm
agitator
blade agitator
stirrer seal
mechanical seal with thermosyphon
voltage
500 Volt
agitator positioning
eccentrically in the upper bottom
