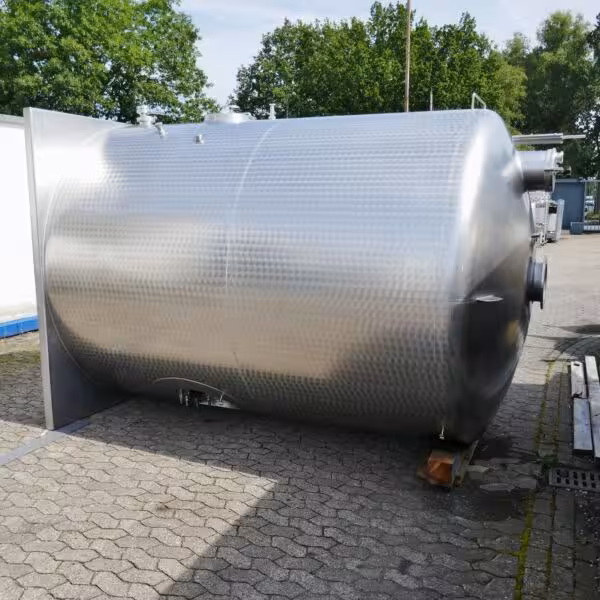

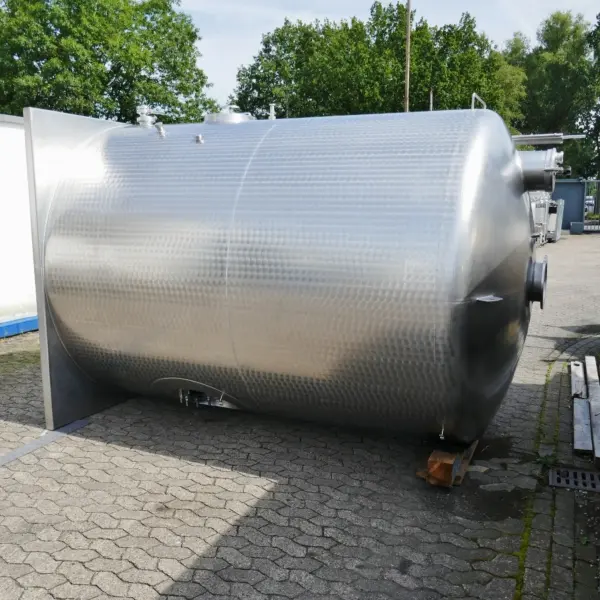

10000 Liter tank, Aisi 304 with propeller agitator
€6,300.00
incl. VAT
€7,497.00
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
Manufacturer
Rieger
location
Bremen
condition
used
Vessel
volume
10.000 liter
lower bottom
cone shaped bottom
construction
standing
stand type
skirt support
Technical Characteristics
diameter inside
2.200 mm
total height
3.450 mm
wall thickness of upper bottom
3 mm
Equipment
Technical documentation
drawing
manhole
in the cylinder, handhole
outlet
100 mm
remarks
1 manhole approx. 320 x 420 mm in the cylinder, 1 handhole diameter 250 mm in the upper bottom; total height according to drawing; Tank on base plate with slope to the outlet (for installation, an appropriate foundation would have to be built on site); upper bottom and top cylinder segment made of 1.4571 (Aisi 316); Tank has been professionally cleaned and overhauled by the manufacturer in 2024; brand new residual drain valves (reduces outlet to DN 50 DIN 11851 (with disc valve)), sampling valves and manhole seals were installed
latest application
Liquid sugar
Material Composition
material upper bottom
AISI316 (V4A) 1.4571
material in contact w/ medium
AISI304 1.4301
Agitator
manufacturer stirrer
Stelzer
power
5.5 KW
output speed
950 rpm
agitator
propeller
voltage
380/660 Volt
agitator positioning
laterally at the cylinder
