9451

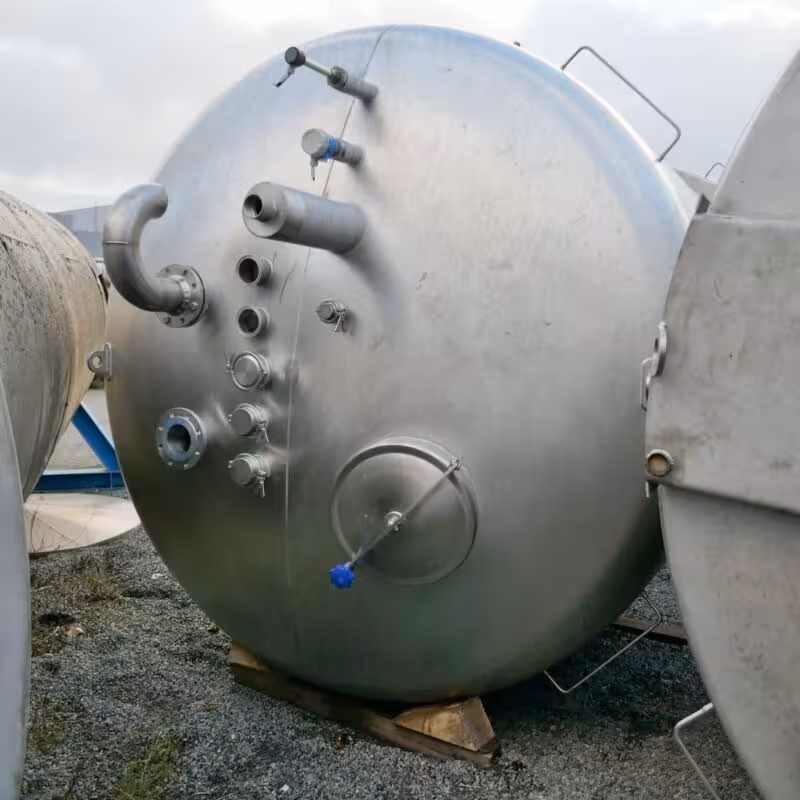

10000 Liter tank for specific weights up to 1.4 KG/L, Aisi 316

€10,200.00  incl. VAT €12,138.00
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
Manufacturer
A&B Apparate- & Behältertechnik Heldrungen GmbH
location
Bremen
condition
used
Vessel
volume
10.000 liter
max. allowable working temperature
80 °C
specific weight of the medium
1.4 (to/m³)
construction
standing
stand type
legs height adjustable
quantity legs
3 Piece
Technical Characteristics
diameter inside
2.500 mm
cylindrical height
1.500 mm
total height
3.600 mm
wall thickness bottom
4 mm
wall thickness cylinder
3 mm
year of construction
2006
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents
manhole
in the cylinder, in the upper bottom (Ø 430)
technical equipment
crane eyes
outlet
flange DN80
remarks
Type plate no longer available; further technical documents available; Diameter manhole cylinder 600 mm; a taper DN 50 is flanged to the outlet
latest application
Slurry
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material legs
stainless steel
