9572

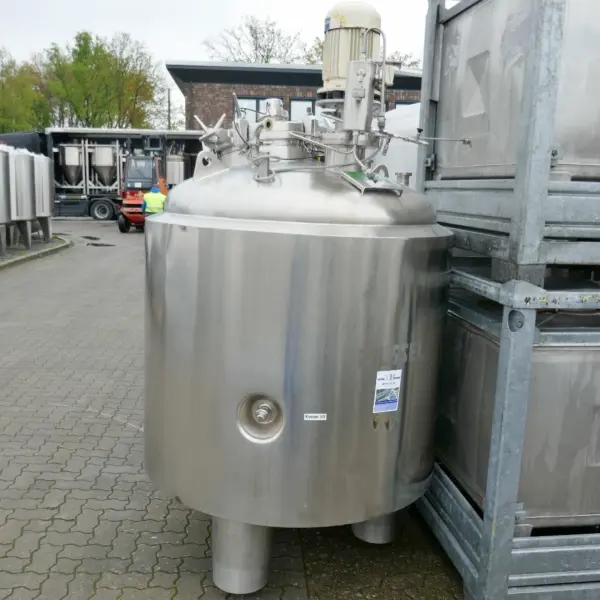

1344 liter heat-/coolable pressure tank, Aisi 316 with propeller agitator
€17,000.00
incl. VAT
€20,230.00
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
Manufacturer
Diessel
location
Bremen
condition
used
Vessel
volume
1.344 liter
vacuum
1,0 bar
max. excess pressure
3,0 bar
max. allowable working temperature
150 °C
construction
standing
stand type
legs height adjustable
quantity legs
3 Piece
double jacket
double jacket
available
Volume double jacket
76,0 liter
max. allowable working overpressure (dj)
2.0 bar
max. allowable working temperature (dj)
150 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.180 mm
diameter outside
1.350 mm
cylindrical height
750 mm
total height
2.400 mm
Wall thickness lower bottom
6.8 mm
wall thickness cylinder
8 mm
wall thickness of upper bottom
6 mm
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents
manhole
in the upper bottom (Ø 500)
nameplate
technical equipment
spray ball, crane eyes
outlet
DN80 DIN 11851
remarks
The tank was rebuilt at the end of 2012 (socket welding and shortening of the feet; test certificate from TÜV is available; the drawing provided in the appendix is the original drawing; 1 dent in the insulating jacket
latest application
Pharmacy
Material Composition
material in contact w/ medium
AISI316Ti 1.4571
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
manufacturer stirrer
PRG
power
0.33 / 1.85 KW
output speed
440 / 940 rpm
agitator
propeller
stirrer seal
mechanical seal with thermosyphon
voltage
380 Volt
agitator positioning
eccentrically in the upper bottom
