8135

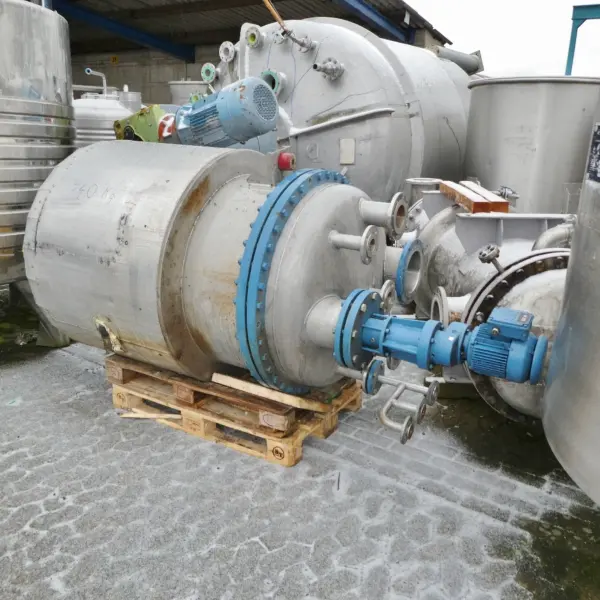

1345 liter heat-/coolable pressure tank, Aisi 316
€8,900.00
incl. VAT
€10,591.00
Price per piece, excl. VAT
1 on Stock
General Information
Manufacturer
Kleiser und Lösch
location
Bremen
condition
used
Vessel
volume
1.345 liter
vacuum
1,0 bar
max. excess pressure
3.2 bar
max. allowable working temperature
200 °C
upper bottom
screwed cover
construction
hanging
stand type
bracket
double jacket
double jacket
available
Volume double jacket
24,0 liter
max. allowable working overpressure (dj)
16.0 bar
max. allowable working temperature (dj)
200 °C
Temperature control cylinder (dj)
half-coil
temperature control bottom (dj)
half-coil
Insulation
insulation
available
material insulation jacket
aluminium
Technical Characteristics
diameter inside
1.000 mm
diameter outside
1.250 mm
cylindrical height
1.360 mm
total height
2.950 mm
Equipment
nameplate
outlet
flange DN80
notice
some residues of previous content, dents at the insulation jacket
remarks
2 support brackets made of Aisi 304 (contact surface the other way around; see photos); flanges partly made of Fe; heating connections cut off; smaller sheet metal cutouts in the insulation jacket
latest application
Pharmaceutical chemistry
Material Composition
material in contact w/ medium
AISI 316 (V4A)
material temperatur control system
AISI 304 (V2A) 1.4301
Agitator
power
1.1 KW
output speed
313 rpm
agitator
propeller
voltage
220/380 Volt
EX-proof
motor is ex-proof according to the nameplate (due to the new ATEX-regulations the application in explosive areas is not permitted without modification/retrofitting)
agitator positioning
eccentrically in the upper bottom
