9587

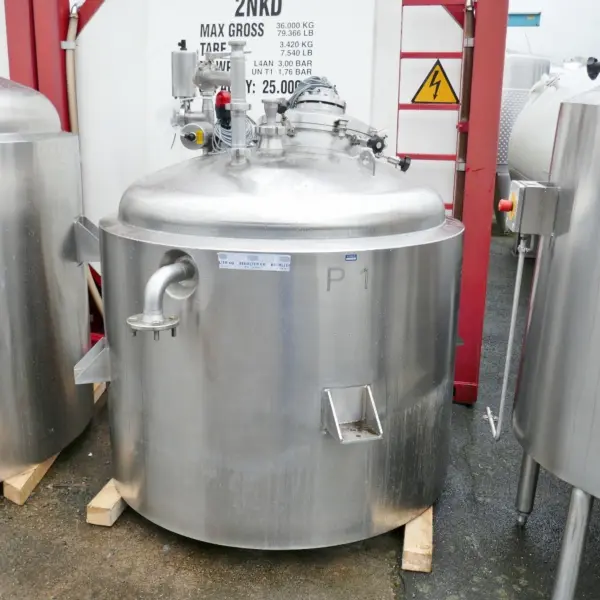

1410 liter heat-/coolable pressure vessel, Aisi 316 with propeller agitator
€15,000.00
incl. VAT
€17,850.00
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
Manufacturer
Waldner
location
Bremen
condition
used
Vessel
volume
1.410 liter
vacuum
1,0 bar
max. excess pressure
3,0 bar
max. allowable working temperature
150 °C
construction
hanging
stand type
bracket
double jacket
double jacket
available
Volume double jacket
93,0 liter
max. allowable working overpressure (dj)
4.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
150 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.300 mm
diameter outside
1.450 mm
cylindrical height
700 mm
total height
2.400 mm
Wall thickness lower bottom
6.9 mm
wall thickness cylinder
8.4 mm
wall thickness of upper bottom
6.1 mm
year of construction
2008
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents,various documents ,CE label and declaration of conformity,operation manual
manhole
in the upper bottom (Ø 500)
nameplate
technical equipment
spray ball, crane eyes
outlet
65 mm
remarks
4 support brackets, stainless steel; Total height is estimated; slight metallic discoloration inside the tank
latest application
Cosmetics
Material Composition
material in contact w/ medium
AISI316Ti 1.4571
material double jacket
AISI304 (V2A) 1.4301
Agitator
manufacturer stirrer
PRG
power
3 KW
output speed
960 rpm
agitator
propeller
voltage
230/400 Volt
agitator positioning
lower bottom
agitator features
Technical documents for the agitator available
