9317

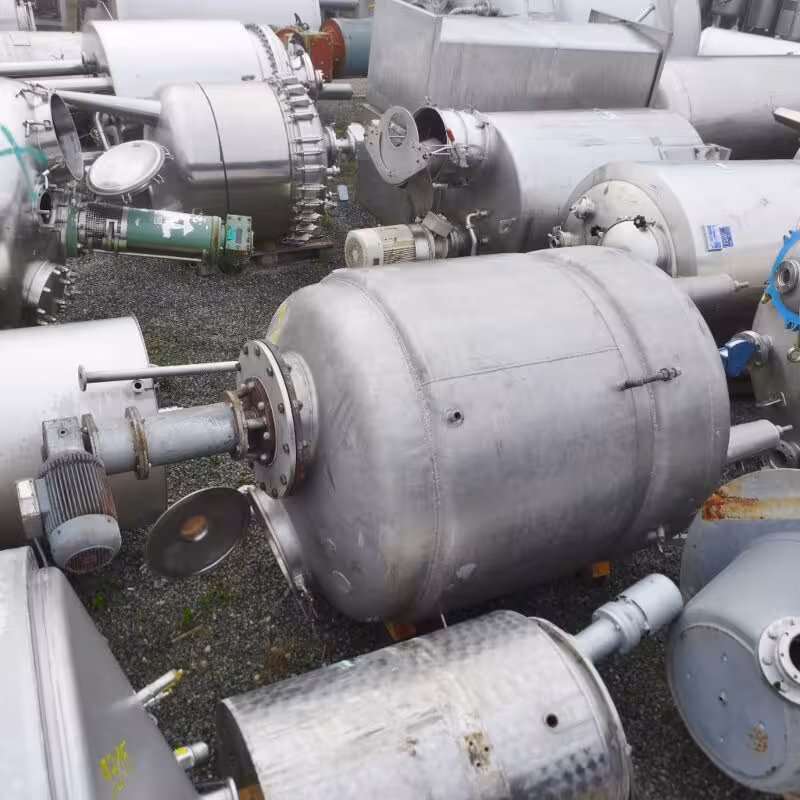

1700 liter heat-/coolable agitator tank, Aisi 304 with inclined blade agitator
€4,900.00
incl. VAT
€5,831.00
Price per piece, excl. VAT
1 on Stock
General Information
location
Bremen
condition
used
Vessel
volume
1.700 liter
construction
standing
stand type
legs height adjustable
quantity legs
4 Piece
double jacket
double jacket
available
Volume double jacket
210,0 liter
max. allowable working overpressure (dj)
2.5 bar
max. allowable working temperature (dj)
150 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Technical Characteristics
diameter inside
1.330 mm
diameter outside
1.420 mm
cylindrical height
1.200 mm
total height
3.300 mm
Equipment
manhole
in the upper bottom (Ø 450)
nameplate
technical equipment
spray ball
outlet
DN50 DIN 11851
remarks
Operating pressure in the double jacket: 2.8 bar; 2 former connections in the upper bottom were welded shut by the previous operator
latest application
Food industry
Material Composition
material in contact w/ medium
AISI304 / AISI321 1.4541
material double jacket
AISI304 (V2A) 1.4541
Agitator
power
1.5 KW
output speed
72 rpm
agitator
cross blade stirrer
voltage
380 Volt
stream interrupter
agitator positioning
eccentrically in the upper bottom
agitator features
The cover on the terminal box of the agitator motor is missing (see photos)
