7081

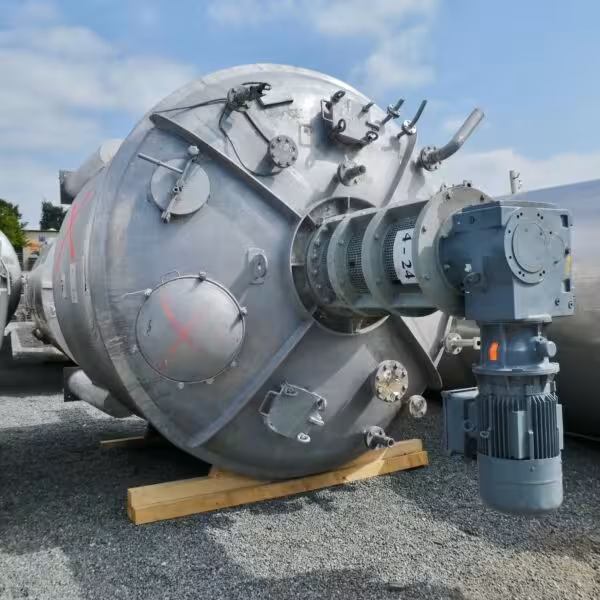

17300 liter agitator tank, Aisi 304n with ex-proof 27 kW blade mixer
€17,500.00
incl. VAT
€20,825.00
Price per piece, excl. VAT
2 pieces on stock
Unterlagen vorhanden
General Information
Manufacturer
Hagemann
location
Bremen
condition
used
Vessel
volume
17.300 liter
max. allowable working temperature
100 °C
specific weight of the medium
1.2 (to/m³)
construction
standing
stand type
legs
quantity legs
4 Piece
Technical Characteristics
diameter inside
2.900 mm
cylindrical height
1.800 mm
total height
5.100 mm
wall thickness bottom
4 mm
wall thickness cylinder
8 mm
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents
manhole
in the upper bottom (Ø 600), handhole
nameplate
outlet
50 mm
notice
some residues of previous content
remarks
1 tank (internal no. 7081-3) with a smaller dent and a trimmed connection in the upper bottom
latest application
colour industry
Material Composition
material in contact w/ medium
AISI304 1.4301
material legs
mild steel
Agitator
power
17 / 27 kW KW
output speed
47 / 95 rpm
agitator
blade agitator
voltage
400 Volt
EX-proof
motor is ex-proof according to the nameplate (due to the new ATEX-regulations the application in explosive areas is not permitted without modification/retrofitting)
agitator positioning
centrically in the upper bottom
