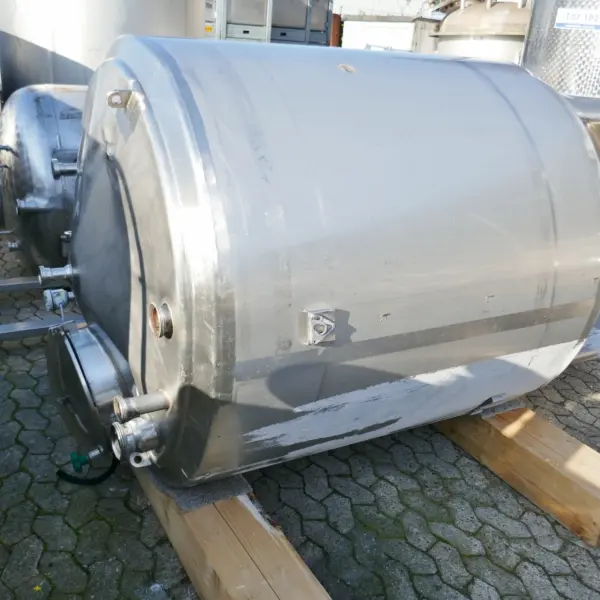

2000 Liter heat-/coolable tank, Aisi 304
€3,950.00
incl. VAT
€4,700.50
Price per piece, excl. VAT
1 on Stock
General Information
location
Bremen
condition
used
Vessel
volume
2.000 liter
lower bottom
conical bottom
construction
standing
stand type
legs height adjustable
quantity legs
3 Piece
double jacket
double jacket
available
Temperature control cylinder (dj)
half-coil
temperature control bottom (dj)
thermoplate
Insulation
insulation
available
insulating jacket
hermetically welded
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.340 mm
diameter outside
1.500 mm
cylindrical height
1.400 mm
total height
3.500 mm
Equipment
manhole
in the upper bottom
technical equipment
spray ball, crane eyes
outlet
150 mm
notice
some residues of previous content, bump at the insulation jacket, pipe end cut flush
remarks
Cone height approx. 1000 mm; manhole approx. 430 mm (slightly unround); dents in the upper bottom; insulation jacket cut open at the end of the cone bottom (see photos)
latest application
Rinse water tank (Cip system) in a dairy
Material Composition
material in contact w/ medium
AISI304 1.4301
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
