S15754

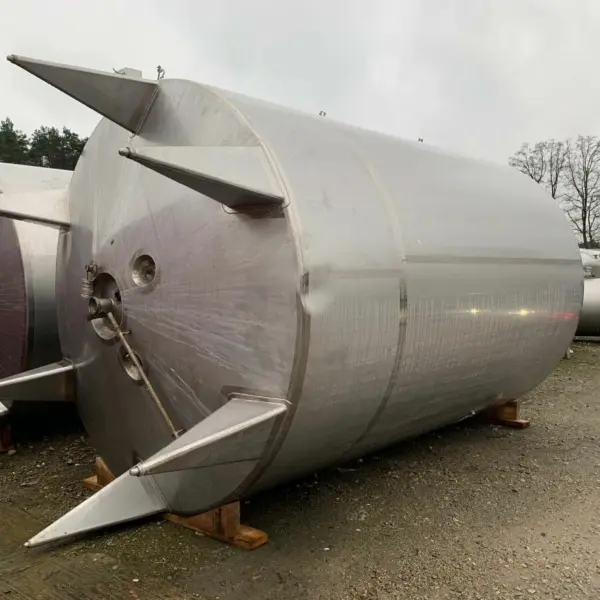

22000 liter insulated heat-/coolable tank, AISI304
€16,950.00
incl. VAT
€20,170.50
Price per piece, excl. VAT
1 on Stock
General Information
location
external warehouse
condition
used
Vessel
volume
22.000 liter
bottom
cone shaped bottom
construction
standing
stand type
legs height adjustable
quantity legs
3 Piece
double jacket
double jacket
available
max. allowable working overpressure (dj)
1.0 bar
Temperature control cylinder (dj)
thermoplate
temperature control bottom (dj)
thermoplate
Insulation
insulation
available
insulating jacket
welded
Insulation material
mineral wool
material insulation jacket
stainless steel
Technical Characteristics
ground clearance
300 mm
diameter inside
2.700 mm
diameter outside
2.800 mm
cylindrical height
3.850 mm
total height
5.150 mm
Equipment
manhole
in the upper bottom
outlet
70 mm
remarks
dent in lower insulation jacket, no warranty on heat-/cooling jacket (not tested)
latest application
food
Material Composition
material in contact w/ medium
AISI304 1.4301
