K0107

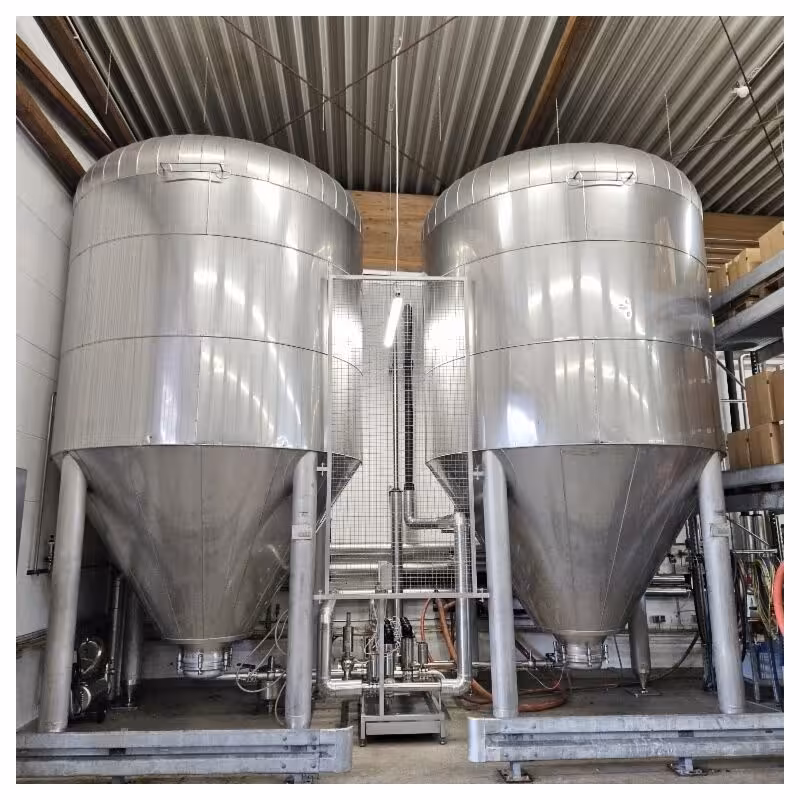

24500 Liter heat-/coolable pressure tank, Aisi 304
Price on request
Price per piece, excl. VAT
2 pieces on stock
Unterlagen vorhanden
General Information
Manufacturer
Bolz
location
External stock
condition
used
Vessel
volume
24.500 liter
max. excess pressure
2.5 bar
max. allowable working temperature
50 °C
lower bottom
conical bottom
construction
standing
stand type
legs height adjustable
quantity legs
4 Piece
double jacket
double jacket
available
Volume double jacket
113,0 liter
max. allowable working overpressure (dj)
2.0 bar
max. allowable working temperature (dj)
70 °C
Temperature control cylinder (dj)
half-coil
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
screwed
Insulation material
PU - foam
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
2.882 mm
diameter outside
3.084 mm
cylindrical height
2.500 mm
total height
6.000 mm
Wall thickness lower bottom
4.5 mm
wall thickness cylinder
3.5 mm
wall thickness of upper bottom
6 mm
Equipment
Technical documentation
drawing,certificate of inspection
nameplate
technical equipment
spray ball
remarks
Total height estimated according to drawing; 1 manhole diameter 450 mm with connection diameter 70 mm at the end of the cone bottom; wall thickness of 1000 mm of cylinder height 4 mm
latest application
Brewery
Material Composition
material in contact w/ medium
AISI304 1.4301
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
