K0081

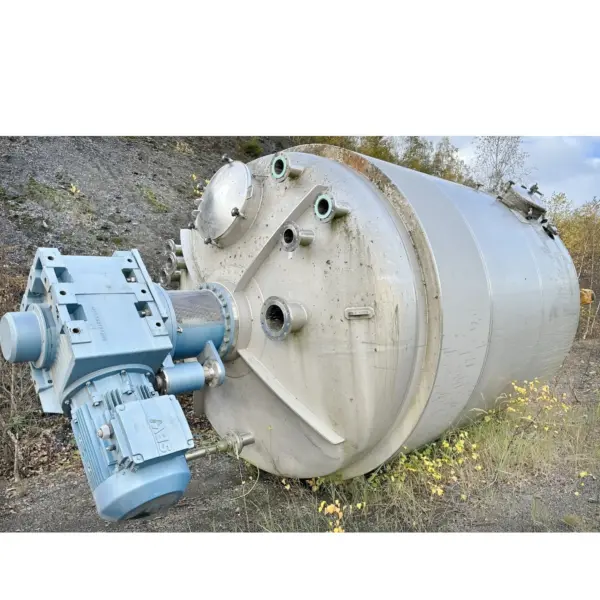

29000 liter heat-/ coolable pressure tank with blade agitator, Aisi 316

Price on request
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
location
External stock
condition
used
Vessel
volume
29.000 liter
vacuum
1,0 bar
max. excess pressure
0.6 bar
max. allowable working temperature
100 °C
specific weight of the medium
1.3 (to/m³)
construction
standing
stand type
legs
quantity legs
4 Piece
double jacket
double jacket
available
Volume double jacket
4.100,0 liter
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Technical Characteristics
diameter inside
2.980 mm
diameter outside
3.200 mm
cylindrical height
3.368 mm
total height
6.800 mm
Wall thickness lower bottom
9 mm
wall thickness cylinder
8 mm
wall thickness of upper bottom
7 mm
year of construction
2007
Equipment
Technical documentation
drawing,CE label and declaration of conformity
manhole
in the cylinder, in the upper bottom
nameplate
outlet
DN 125 mm
remarks
Manhole diameter upper bottom: approx. 700 mm; Manhole diameter cylinder: approx. 500 mm;
latest application
Adhesive production
Material Composition
material in contact w/ medium
AISI316Ti 1.4571
Agitator
power
75 KW
output speed
40 rpm
agitator
blade agitator
voltage
400 Volt
floor bearing
agitator positioning
centrically in the upper bottom
