9619

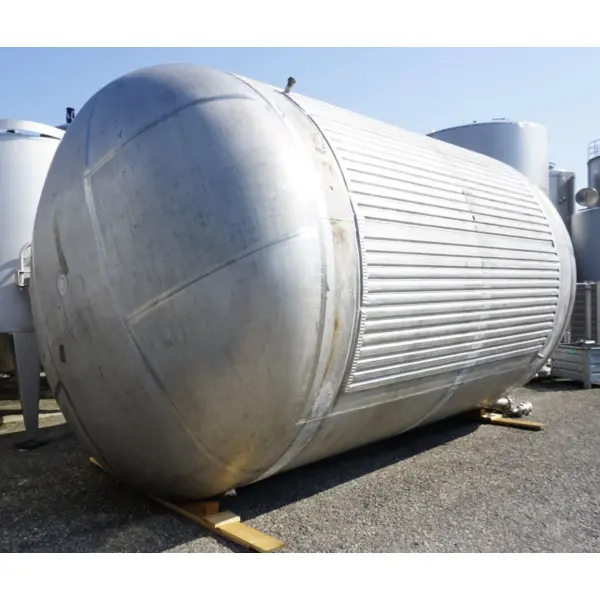

36400 liter heat-/coolable horizontal pressure tank, Aisi 304
€16,950.00
incl. VAT
€20,170.50
Price per piece, excl. VAT
3 pieces on stock
General Information
location
Bremen
condition
used
Vessel
volume
36.000 liter
max. excess pressure
2,0 bar
construction
horizontal
stand type
support saddle
double jacket
double jacket
available
Temperature control cylinder (dj)
squared half-coil
Technical Characteristics
diameter inside
3.290 mm
cylindrical length
3180 mm
total length
5.000 mm
wall thickness bottom
4.8 mm
wall thickness cylinder
2.8 mm
Equipment
nameplate
technical equipment
butterfly valve, spray ball
outlet
DN100 DIN 11851
notice
some residues of previous content
remarks
1 manhole approx. 360 x 440 mm in the front bottom; 3 loose bearing saddles each made of Fe (galvanized); 1 cut-off connection diameter 100 mm at the bottom of the cylinder; 1 tank with a larger dent in the cylinder/bottom transition as well as several smaller dents; 1 other tank with dents in the cylinder (see photos)
latest application
Brewery
Material Composition
material in contact w/ medium
AISI304 1.4301
material temperatur control system
AISI 304 (V2A) 1.4301
