7179

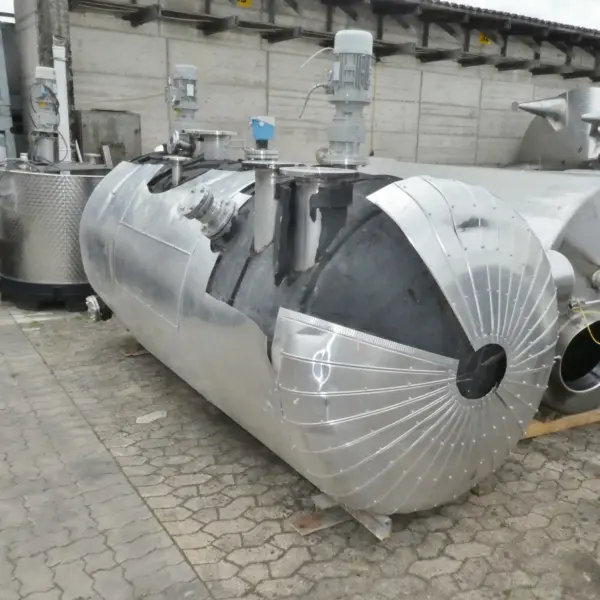

4000 liter horizontal storage tank with 2 mounted cross blade stirrers, Aisi 304
€3,200.00
incl. VAT
€3,808.00
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
location
Bremen
condition
used
Vessel
volume
4.000 liter
construction
horizontal
stand type
cage
Insulation
insulation
available
insulating jacket
screwed
Insulation material
Armaflex
material insulation jacket
aluminium
Technical Characteristics
diameter inside
1.290 mm
cylindrical length
3050 mm
total height
2.150 mm
total length
3.700 mm
Equipment
Technical documentation
drawing
outlet
flange DN65
notice
some residues of previous content, manhole cover is missing
remarks
bearer frame made of Fe; insulation jacket with dents and extensively nonexistent; manhole appr. 300 x 400 mm in one of the bottoms
latest application
ethanol
Material Composition
material in contact w/ medium
AISI304 1.4301
Agitator
power
1.5 KW
output speed
195 rpm
agitator
cross blade stirrer
voltage
230/400 Volt
stirrer
2 stirrer
agitator positioning
on the tank
