9558

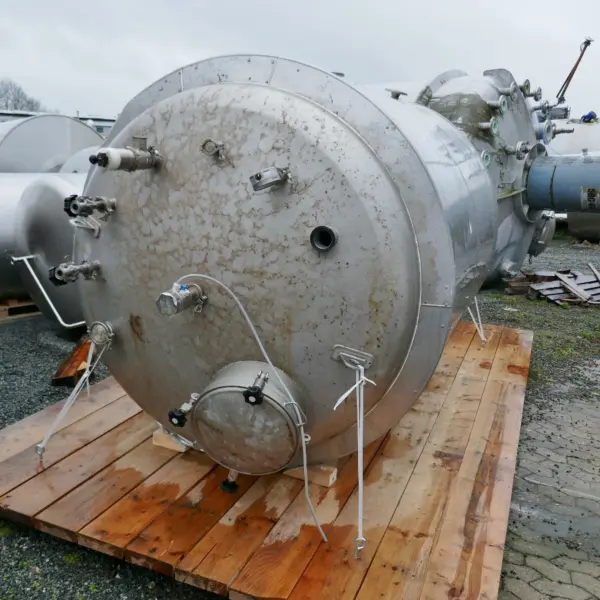

4500 liter heat-/coolable pressure tank, Aisi 316
€7,750.00
incl. VAT
€9,222.50
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
location
Bremen
condition
used
Vessel
volume
4.500 liter
vacuum
1,0 bar
max. excess pressure
3,0 bar
max. allowable working temperature
150 °C
construction
standing
stand type
legs height adjustable
quantity legs
4 Piece
double jacket
double jacket
available
Volume double jacket
28,0 liter
max. allowable working overpressure (dj)
6.0 bar
max. allowable working temperature (dj)
150 °C
Temperature control cylinder (dj)
half-coil
Insulation
insulation
available
insulating jacket
screwed
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.600 mm
diameter outside
1.820 mm
cylindrical height
1.900 mm
total height
3.450 mm
Wall thickness lower bottom
6 mm
wall thickness cylinder
6 mm
wall thickness of upper bottom
8 mm
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents
manhole
in the upper bottom (Ø 400)
nameplate
technical equipment
crane eyes
outlet
65 mm
notice
Metallic discolouration inside
remarks
Half-coil around approx. 900 mm of the cylinder height; Smaller dents in the insulation jacket
latest application
Pharmacy
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material temperatur control system
AISI 304 (V2A) 1.4541
material legs
stainless steel
