7818

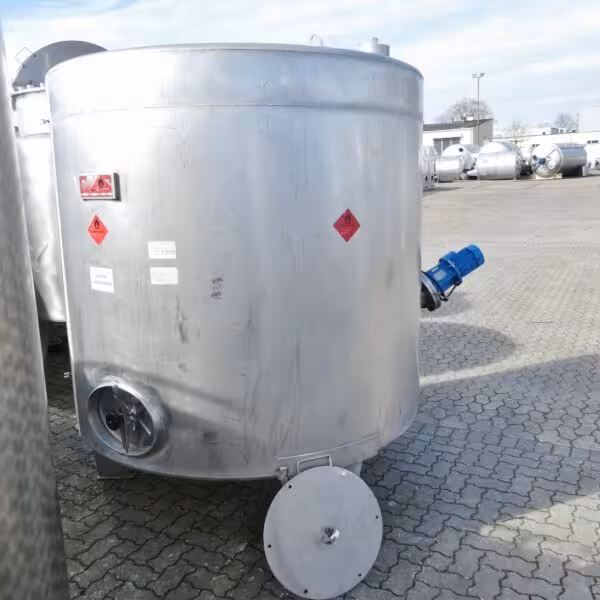

5000 liter tank, Aisi 304
€4,650.00
incl. VAT
€5,533.50
Price per piece, excl. VAT
1 on Stock
General Information
location
Bremen
condition
used
Vessel
volume
5.000 liter
construction
standing
stand type
legs
quantity legs
3 Piece
Technical Characteristics
diameter inside
1.890 mm
cylindrical height
1.690 mm
total height
2.450 mm
Wall thickness lower bottom
2.5 mm
wall thickness cylinder
1.9 mm
wall thickness of upper bottom
2.0 mm
Equipment
manhole
in the cylinder, in the upper bottom
nameplate
technical equipment
crane eyes
outlet
DN50 DIN 11851
remarks
Diameter manhole upper bottom appr. 425 mm, manhole cylinder appr. 310 x 425 mm; small dents in the cylinder
latest application
Spirits
Material Composition
material in contact w/ medium
AISI304 1.4301
material legs
stainless steel
Agitator
power
0.55 KW
output speed
1390 rpm
agitator
propeller
voltage
220/380 Volt
EX-proof
motor is ex-proof according to the nameplate (due to the new ATEX-regulations the application in explosive areas is not permitted without modification/retrofitting)
agitator positioning
laterally at the cylinder
