9570

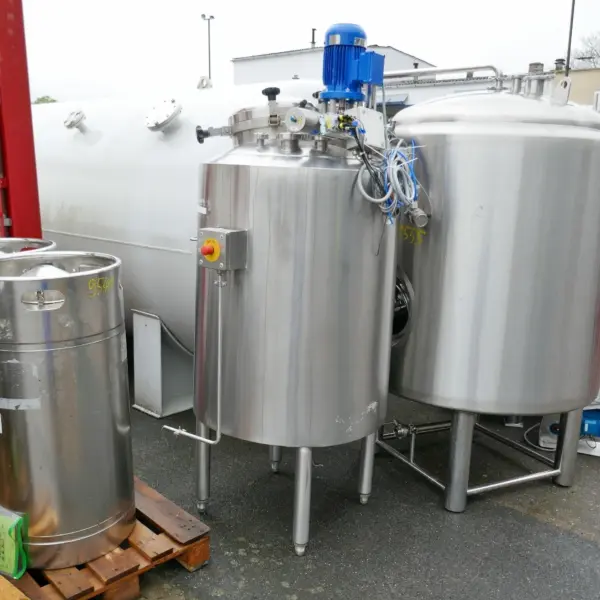

530 liter heat-/coolable pressure tank, Aisi 316 with propeller agitator
€12,800.00
incl. VAT
€15,232.00
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
location
Bremen
condition
used
Vessel
volume
530 liter
vacuum
1,0 bar
max. excess pressure
3,0 bar
max. allowable working temperature
143 °C
construction
standing
stand type
legs height adjustable
quantity legs
4 Piece
double jacket
double jacket
available
Volume double jacket
70,0 liter
max. allowable working overpressure (dj)
3.0 bar
max. allowable working temperature (dj)
143 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
welded
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
800 mm
diameter outside
900 mm
cylindrical height
900 mm
total height
2.250 mm
wall thickness bottom
5 mm
wall thickness cylinder
5 mm
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents
manhole
in the upper bottom (Ø 400)
nameplate
technical equipment
spray ball
outlet
DN80 DIN 11851
notice
some residues of previous content
remarks
Original drawing available; tank was rebuilt in 1997 (e.g. changing the feet or connections); Evidence of the subsequent pressure test available; Conversion drawing only available as a fax; 1 dip tube inside the tank
latest application
Pharmacy
Material Composition
material in contact w/ medium
AISI316Ti 1.4571
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
power
0.55 KW
output speed
670 rpm
agitator
propeller
voltage
230/400 Volt
agitator positioning
eccentrically in the upper bottom
