9681

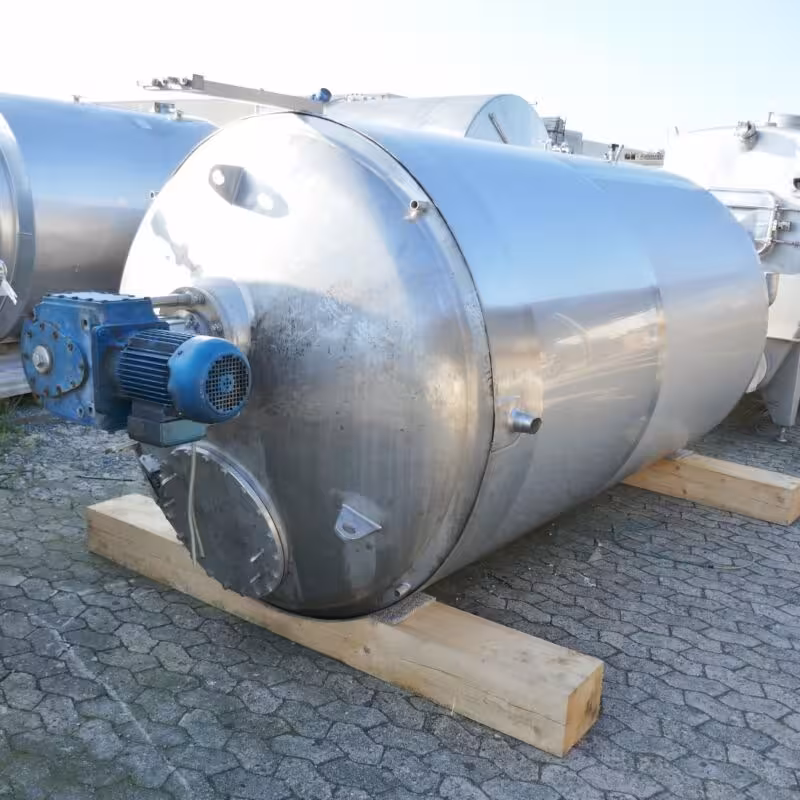

5530 liter heat-/coolable pressure tank / sterile pressure tank, Aisi 304 with blades agitator
€12,000.00
incl. VAT
€14,280.00
Price per piece, excl. VAT
1 on Stock
General Information
Manufacturer
Apparate- und Behältertechnik Harrislee
location
Bremen
condition
used
Vessel
volume
5.530 liter
vacuum
1,0 bar
max. excess pressure
3.2 bar
max. allowable working temperature
145 °C
construction
standing
stand type
legs height adjustable
quantity legs
4 Piece
double jacket
double jacket
available
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Technical Characteristics
diameter inside
1.550 mm
diameter outside
1.660 mm
cylindrical height
2.500 mm
total height
4.350 mm
Equipment
manhole
in the upper bottom (Ø 450)
nameplate
technical equipment
spray ball, crane eyes
outlet
available
notice
pipe end cut flush
remarks
Double jacket probably with trickle ring - only suitable for pressureless tempering; the welding of the double jacket in the upper area has come loose slightly in places; outlet diameter 65 mm (tapers towards the tank to approx. 50 mm); small dents inside the tank; heating connections cut off
latest application
Dairy
Material Composition
material in contact w/ medium
AISI304 1.4301
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
power
0.8 / 1.6 KW
output speed
15.5 / 31 rpm
agitator
blade agitator
voltage
380 Volt
floor bearing
agitator positioning
eccentrically in the upper bottom
