9080

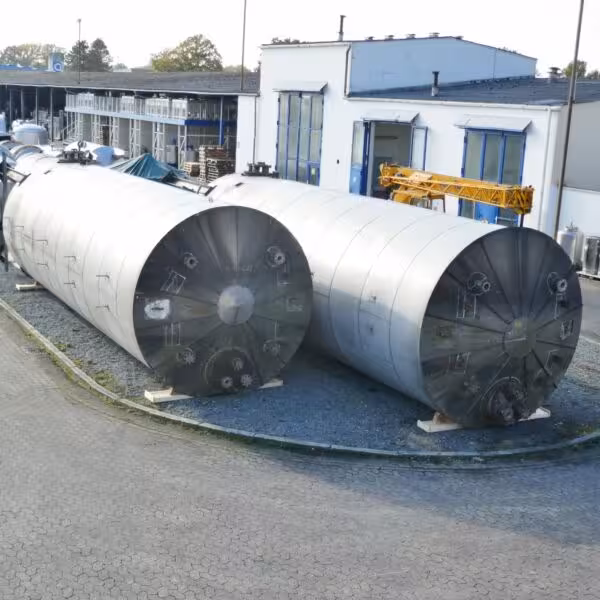

60000 Liter heat-/coolable pressure tank, Aisi 304
€39,500.00
incl. VAT
€47,005.00
Price per piece, excl. VAT
2 pieces on stock
Unterlagen vorhanden
General Information
Manufacturer
Schleifenbaum & Weber
location
Bremen
condition
used
Vessel
volume
60.000 liter
vacuum
0.2 bar
max. excess pressure
1.5 bar
max. allowable working temperature
200 °C
construction
standing
stand type
legs
quantity legs
4 Piece
double jacket
double jacket
available
Volume double jacket
105,0 liter
max. allowable working overpressure (dj)
6.0 bar
max. allowable working temperature (dj)
250 °C
temperature control bottom (dj)
half-coil
Insulation
insulation
available
insulating jacket
screwed
Insulation material
mineral wool
material insulation jacket
aluminium
Technical Characteristics
diameter inside
3.000 mm
diameter outside
3.200 mm
cylindrical height
9.000 mm
total length
12.300 mm
Wall thickness lower bottom
10 mm
wall thickness cylinder
5 mm
wall thickness of upper bottom
7 mm
Equipment
Technical documentation
drawing
manhole
in the cylinder, in the upper bottom, in the upper bottom (Ø 600)
nameplate
technical equipment
crane eyes
outlet
flange DN80
notice
bump at the insulation jacket, manhole cover plated
remarks
Manhole cylinder NW 600; smaller sheet metal cutouts in the insulation jacket
latest application
Rapeseed oil
Material Composition
material in contact w/ medium
AISI304 / AISI321 1.4541
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
mild steel
