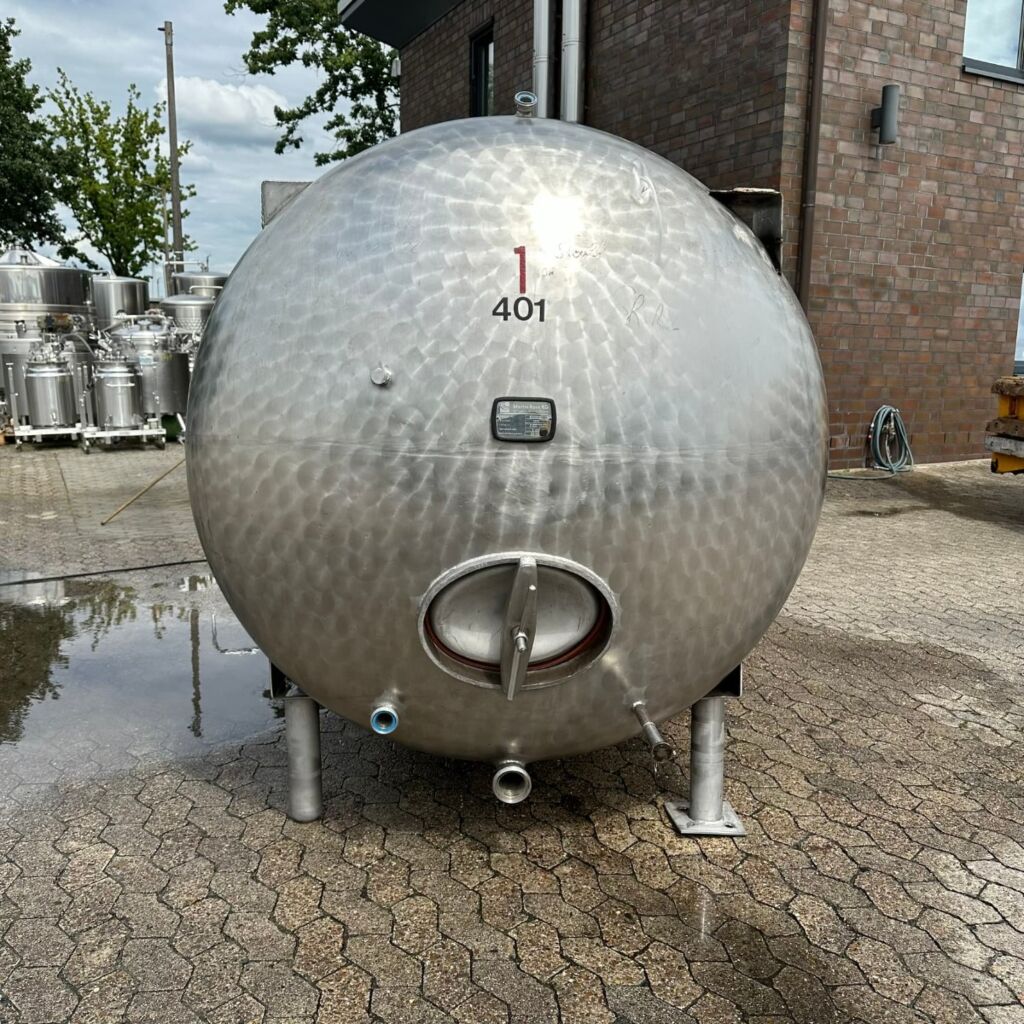

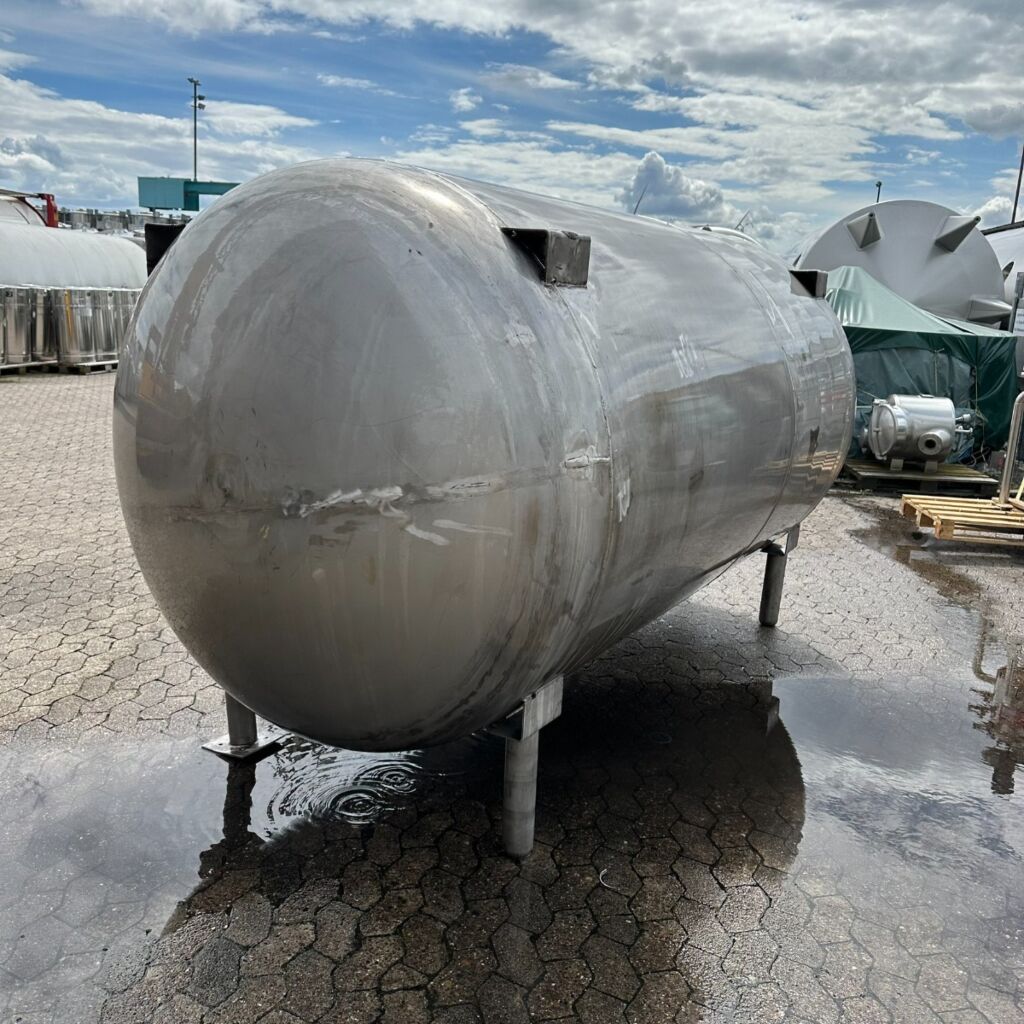

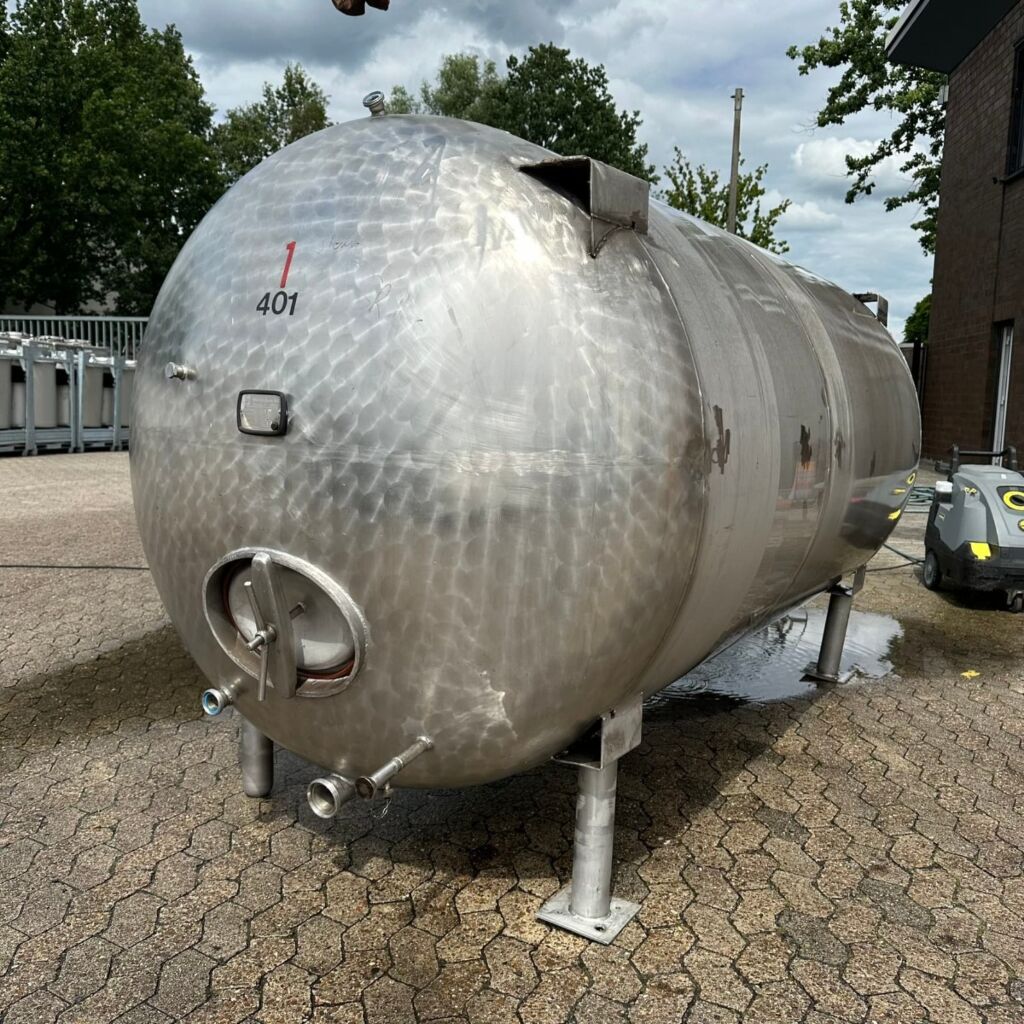

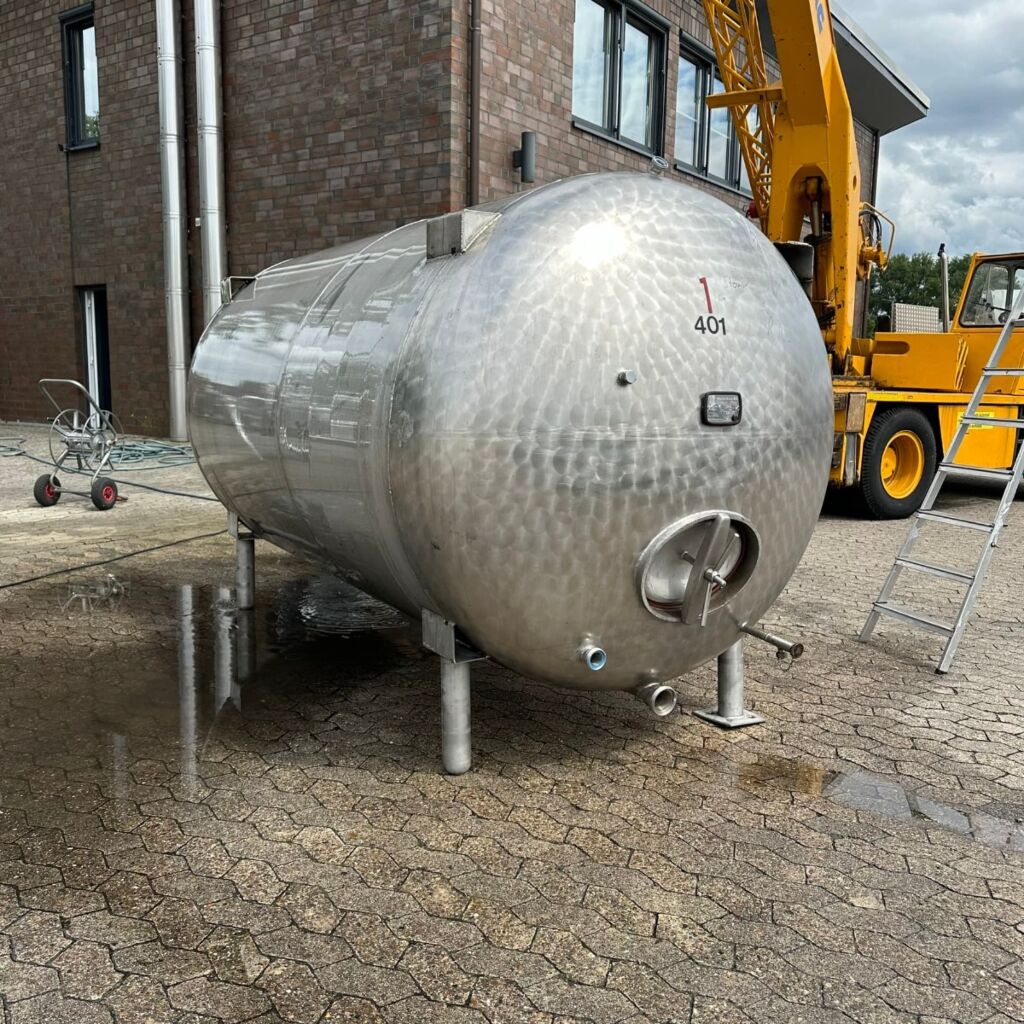

6200 liter horizontal pressure tank, Aisi 304
€8,000.00
incl. VAT
€9,520.00
Price per piece, excl. VAT
4 pieces on stock
General Information
Manufacturer
Martin Rosa KG
location
Bremen
condition
used
Vessel
volume
6.200 liter
max. excess pressure
8,0 bar
construction
horizontal

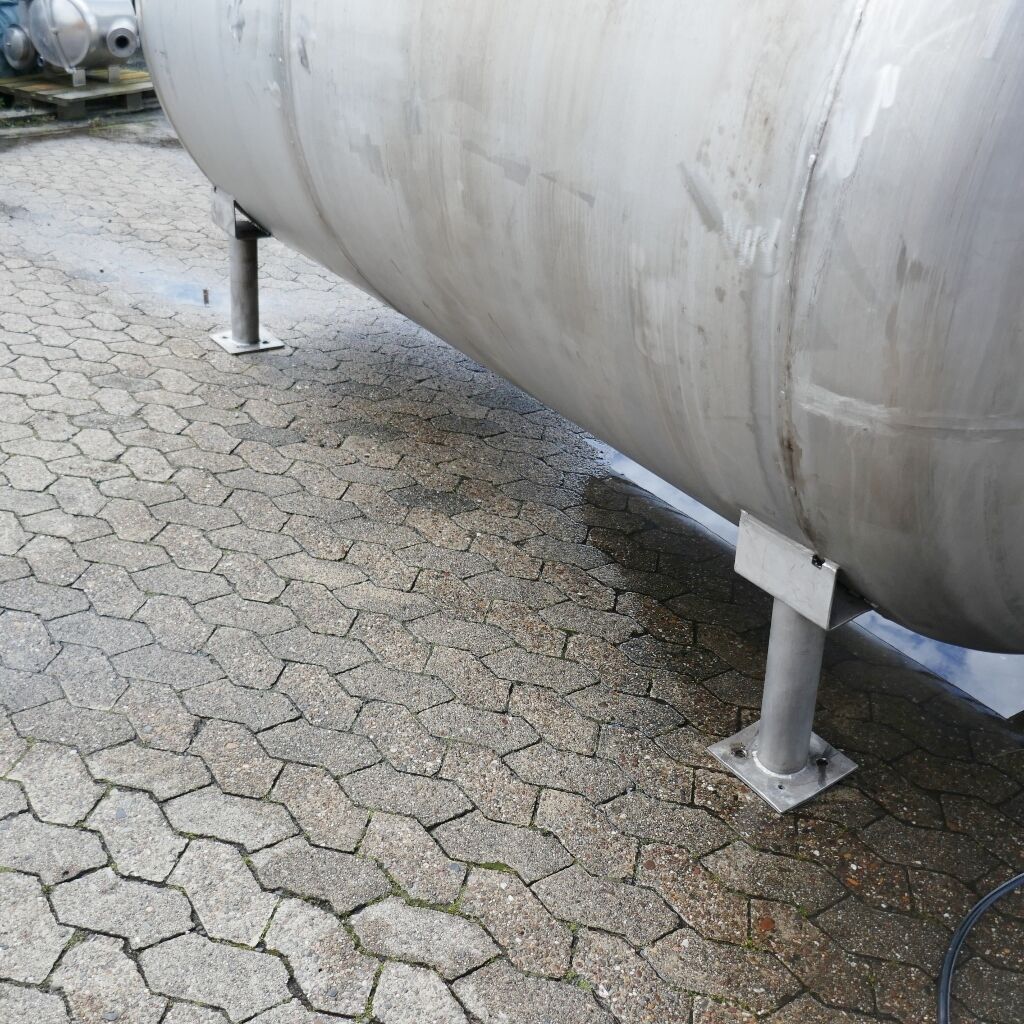

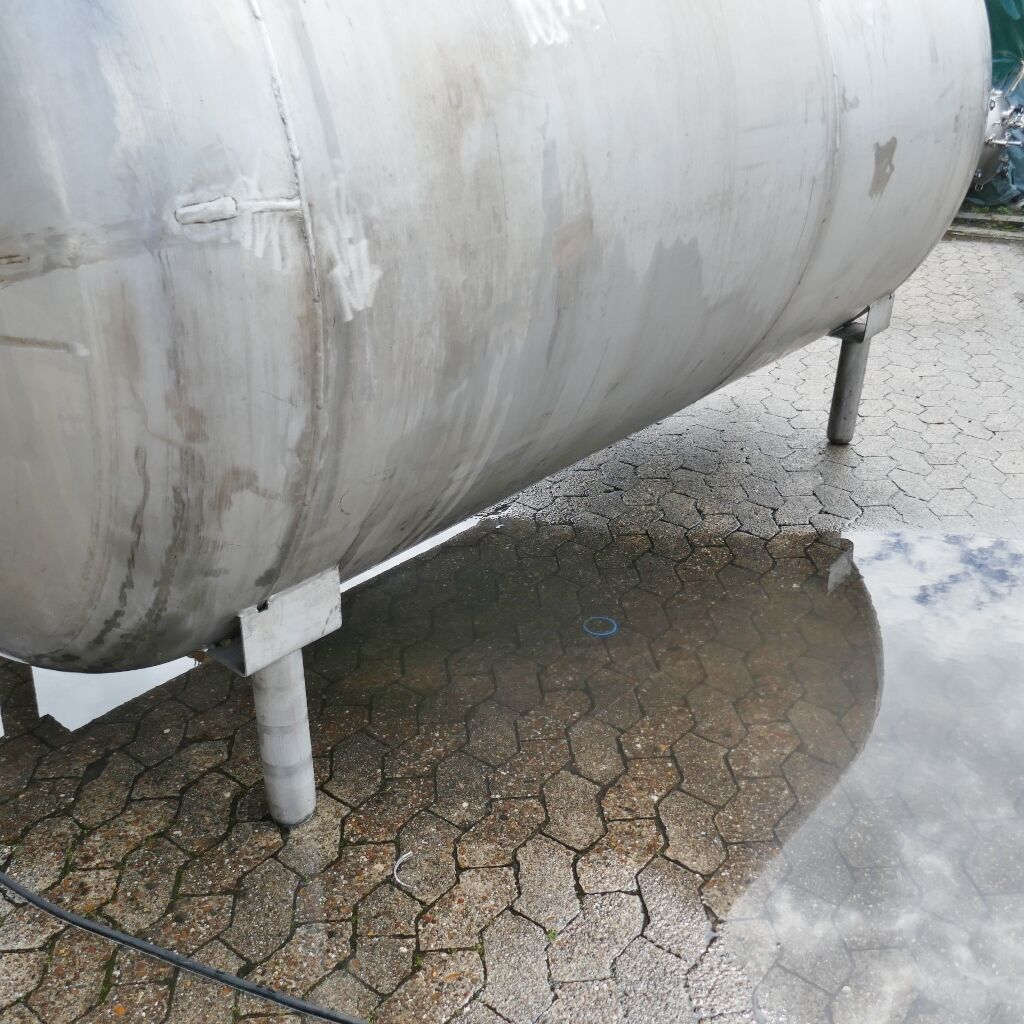

stand type
legs
quantity legs
4 Piece
Technical Characteristics
diameter inside
1.600 mm
cylindrical length
2470 mm
total height
1.900 mm
total length
3.400 mm
wall thickness bottom
4 mm
wall thickness cylinder
4 mm
Equipment

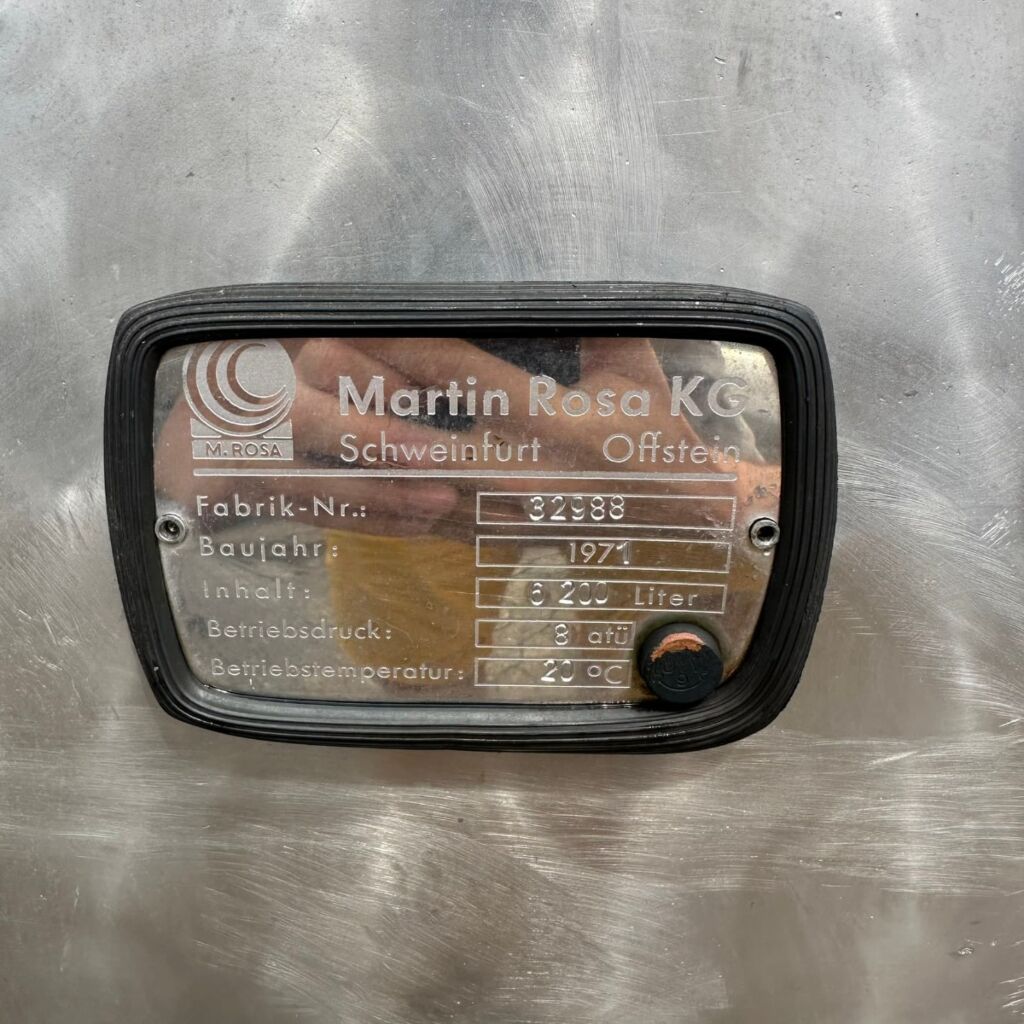

nameplate

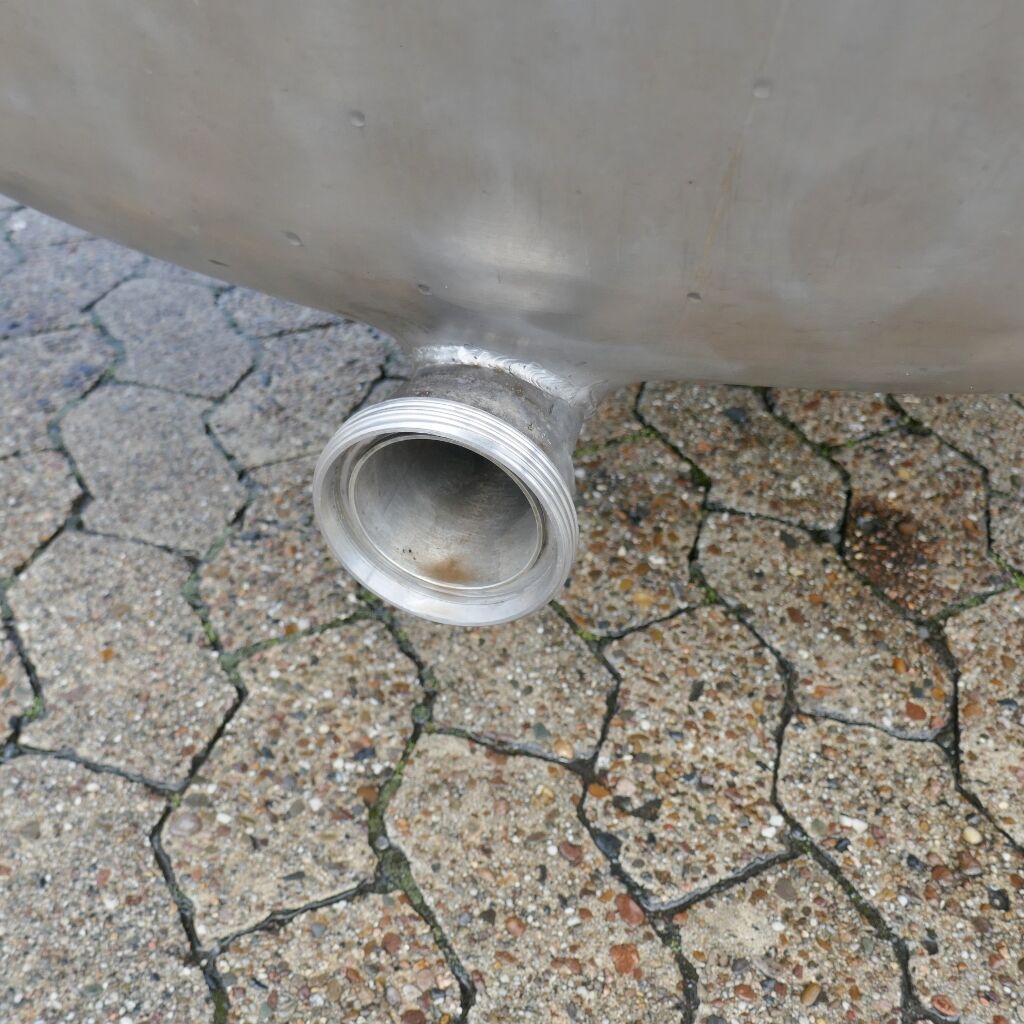

outlet
DN65 DIN 11851
notice

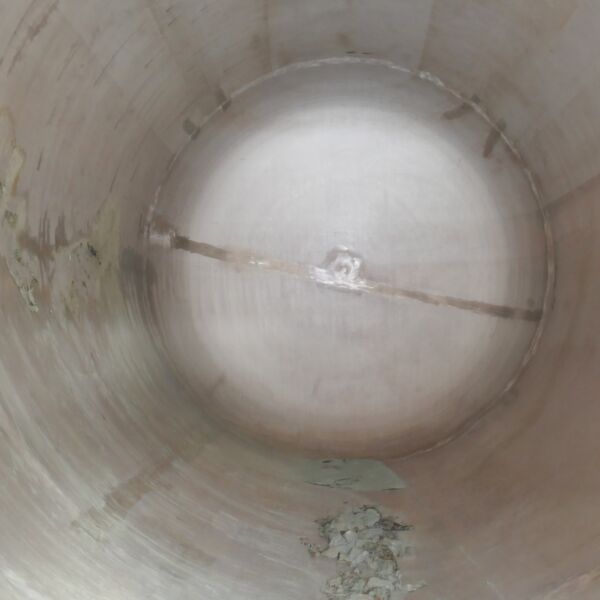

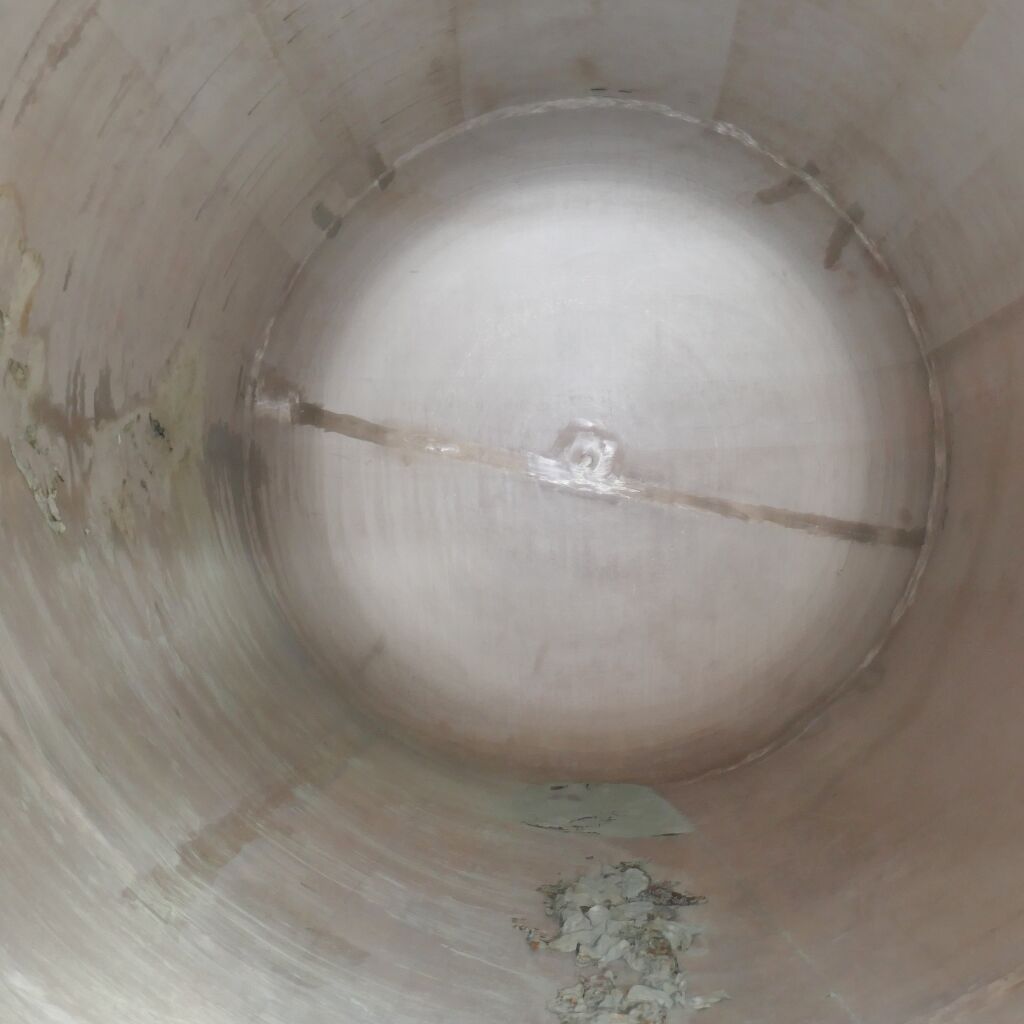

some residues of previous content
remarks

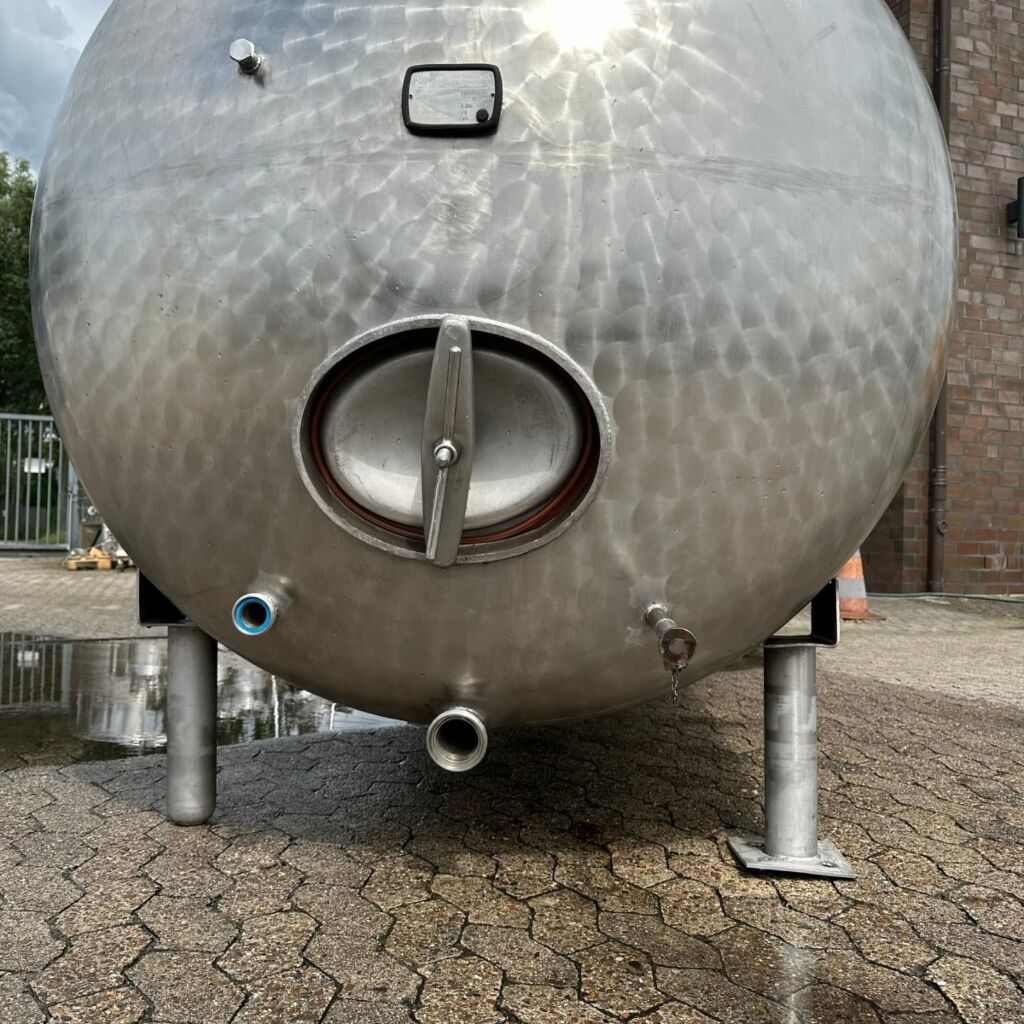

1 manhole approx. 320 x 420 mm in the front bottom (the manhole cover of 1 tank is missing); the type plate of 1 tank is missing; front bottom marbled on the outside; foot ends partially cut off, total height may vary slightly
latest application
sparkling wine
Material Composition
material in contact w/ medium
AISI304 1.4301
material legs
stainless steel
