8611

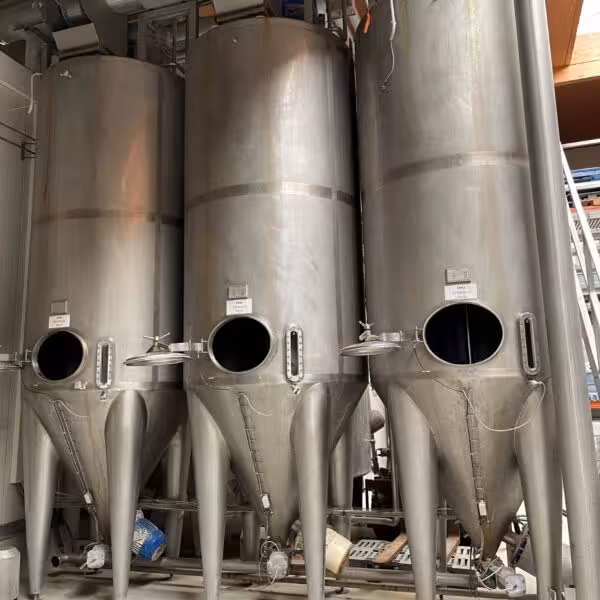

6500 liter agitator tank, Aisi 304 with 2 propeller agitators

€6,000.00  incl. VAT €7,140.00
Price per piece, excl. VAT
3 pieces on stock
General Information
location
Bremen
condition
used
Vessel
volume
6.500 liter
max. allowable working temperature
90 °C
lower bottom
conical bottom
upper bottom
geschweißter Deckel mit Klappsegment
construction
standing
stand type
legs height adjustable
quantity legs
4 Piece
Technical Characteristics
diameter inside
1.600 mm
cylindrical height
2.960 mm
total height
5.550 mm
year of construction
2004
Equipment
manhole
in the cylinder
nameplate
technical equipment
spray ball, crane eyes
outlet
80 mm
notice
some residues of previous content
remarks
Cone height approx. 1300 mm; Manhole approx. 415 x 500 mm; 1 rectangular opening approx. 350 x 440 mm without cover in the upper bottom; in 1 tank 1 small crack in the cone bottom at the agitator connection (in this tank also dents in the cylinder in the area of the folding segment); on another tank the agitator flange of the bottom propeller agitator appears to be damaged (see photos)
latest application
Rennet production
Material Composition
material in contact w/ medium
AISI304 1.4301
material legs
stainless steel
Agitator
agitator
propeller
stream interrupter
agitator positioning
centrically in the upper bottom
agitator features

Agitator data cannot be read for this agitator; agitator motors with signs of corrosion; no nameplate on one of the agitators in the cone

Second Agitator
agitator
propeller
agitator positioning
lower bottom
output speed
1450 rpm
voltage
400/690 Volt
power
5.5 KW
