9338

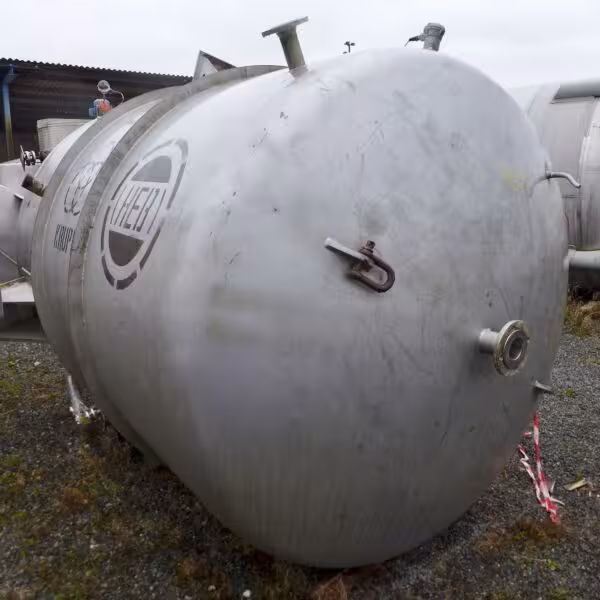

9140 liter heat-/coolable pressure tank, Aisi 304
€10,500.00
incl. VAT
€12,495.00
Price per piece, excl. VAT
1 on Stock
General Information
location
Bremen
condition
used
Vessel
volume
9.140 liter
vacuum
1,0 bar
max. allowable working temperature
200 °C
construction
hanging
stand type
bracket
double jacket
double jacket
available
Volume double jacket
219,0 liter
max. allowable working temperature (dj)
242 °C
temperature control inside
heating-coil
Technical Characteristics
diameter inside
1.990 mm
cylindrical height
2.400 mm
total height
3.750 mm
Wall thickness lower bottom
6.1 mm
wall thickness cylinder
6.3 mm
wall thickness of upper bottom
6.3 mm
Equipment
manhole
in the cylinder
nameplate
technical equipment
crane eyes
outlet
160 mm
notice
pipe end cut flush
remarks
Maximum operating pressure heating coil 35 bar; 3 support brackets, Fe; Manhole diameter approx. 490 mm; several external parts made of Fe, e.g. B. manhole cover flange and insulating rings around the cylinder
latest application
Processing of wool fat
Material Composition
material in contact w/ medium
AISI304 / AISI321 1.4541
material temperatur control system
stainless steel
