K0099

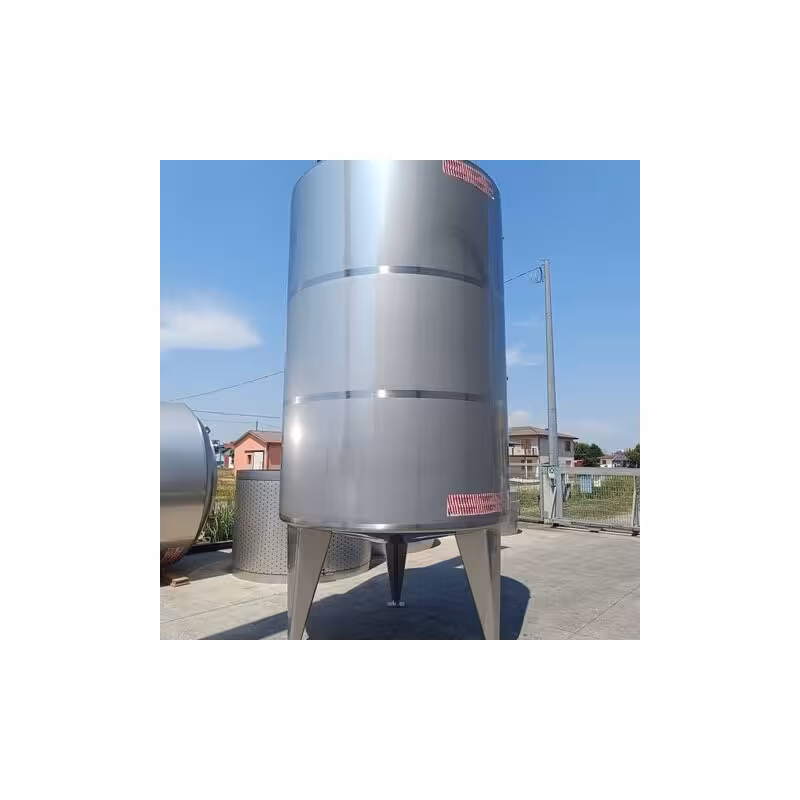

Brand new 10000 Liter heat-/coolable tank, Aisi 316
Price on request
Price per piece, excl. VAT
6 pieces on stock
General Information
location
External stock
condition
brand new
Vessel
volume
10.000 liter
max. allowable working temperature
90 °C
construction
standing
stand type
legs
quantity legs
3 Piece
double jacket
double jacket
available
Volume double jacket
38,0 liter
max. allowable working overpressure (dj)
3.0 bar
max. allowable working temperature (dj)
90 °C
Temperature control cylinder (dj)
thermoplate
temperature control bottom (dj)
thermoplate
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
mineral wool
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
2.050 mm
diameter outside
2.200 mm
cylindrical height
3.000 mm
total height
4.800 mm
Equipment
Technical documentation
drawing
manhole
in the upper bottom (Ø 500)
nameplate
technical equipment
ventilation, crane eyes
outlet
76 mm
remarks
Total height as per drawing
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
agitator
agitator flange
agitator positioning
eccentrically in the upper bottom
