S11498

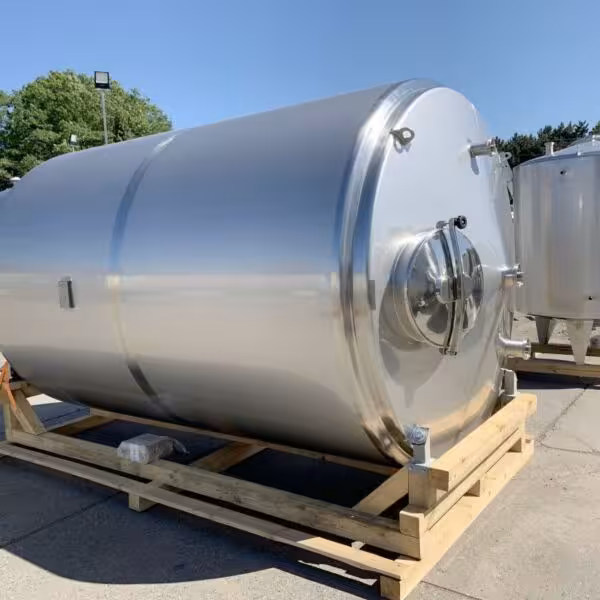

Brand new 10300 liter triple jacketed (insulated & heatable) 10300 liter tank, AISI 316
€25,950.00
incl. VAT
€30,880.50
packaging costs:
€617.00
Price per piece, excl. VAT
3 pieces on stock
Unterlagen vorhanden
General Information
location
external warehouse
condition
brand new
Vessel
volume
10.300 liter
max. allowable working temperature
130 °C
specific weight of the medium
1,0 (to/m³)
bottom
cone shaped bottom
construction
standing
stand type
legs height adjustable
quantity legs
4 Piece
double jacket
double jacket
available
max. allowable working overpressure (dj)
3.0 bar
max. allowable working temperature (dj)
110 °C
Temperature control cylinder (dj)
thermoplate
temperature control bottom (dj)
thermoplate
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
stone wool
material insulation jacket
stainless steel
Technical Characteristics
ground clearance
306 mm
diameter inside
2.024 mm
diameter outside
2.145 mm
cylindrical height
3.000 mm
total height
4.041 mm
Wall thickness lower bottom
3 mm
wall thickness cylinder
2.5 mm
wall thickness of upper bottom
2 mm
Equipment
Technical documentation
drawing
manhole
in the upper bottom (Ø 500)
nameplate
technical equipment
crane eyes
outlet
DN65 DIN 11851
remarks
Pressure rating double jacket for water pressure (steam pressure 0.49 bar)
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material double jacket
AISI304 (V2A) 1.4301
material legs
stainless steel
