S11563

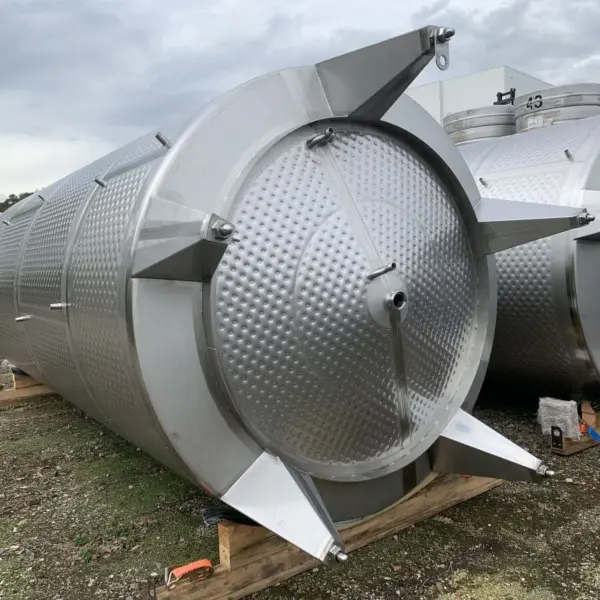

Brand new 26000 Liter heat-/coolable tank, Aisi 316
€28,950.00
incl. VAT
€34,450.50
packaging costs:
€205.00
Price per piece, excl. VAT
2 pieces on stock
General Information
location
external warehouse
condition
brand new
Vessel
volume
26.000 liter
specific weight of the medium
1.3 (to/m³)
bottom
cone shaped bottom
construction
standing
stand type
legs height adjustable
quantity legs
5 Piece
double jacket
double jacket
available
max. allowable working overpressure (dj)
3.0 bar
max. allowable working temperature (dj)
100 °C
Temperature control cylinder (dj)
thermoplate
temperature control bottom (dj)
thermoplate
Technical Characteristics
ground clearance
365 mm
diameter outside
2.400 mm
cylindrical height
5.500 mm
total height
6.642 mm
Wall thickness lower bottom
4 mm
wall thickness cylinder
2.5 mm
wall thickness of upper bottom
2.5 mm
Equipment
Technical documentation
drawing
nameplate
technical equipment
crane eyes
outlet
DN65 DIN 11851
remarks
Pressure rating double jacket for water pressure (steam pressure 0.49 bar)
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material double jacket
AISI304 (V2A) 1.4301
