14830

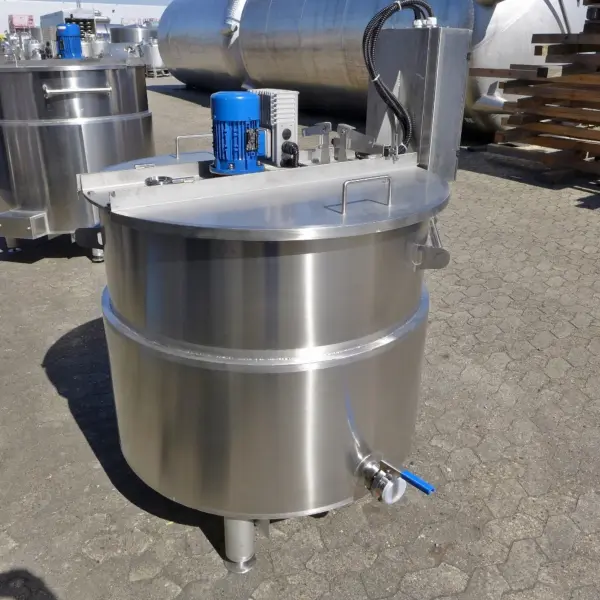

Brand new 530 liter electrically heatable agitator tank, Aisi 316 with propeller agitator
Price on request
Price per piece, excl. VAT
DELIVERY TIME:
ON REQUEST
ON REQUEST
Unterlagen vorhanden
General Information
location
Bremen
condition
brand new
Vessel
Manufacturer
Behälter KG Bremen
volume
530 liter
max. allowable working temperature
90 °C
lower bottom
flat bottom with slope
upper bottom
agitator traverse with hinged cover
construction
standing
stand type
legs height adjustable
quantity legs
4 Piece
double jacket
double jacket
available
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
stone wool
material insulation jacket
stainless steel
insulation thickness
25 mm
Technical Characteristics
diameter inside
945 mm
diameter outside
1.050 mm
cylindrical height
750 mm
total height
1.650 mm
Wall thickness lower bottom
2 mm
wall thickness cylinder
2 mm
Equipment
Technical documentation
drawing
nameplate
technical equipment
butterfly valve, frequency converter
outlet
DN50 DIN 11851
remarks
Double jacket must be operated without pressure; 2 electric heaters (6 kW) for heating up the heating medium in the double jacket; This heating medium (glycerin or thermal oil) would have to be introduced on site before commissioning; the tanks are supplied without heating fluid and a dry connection of the heating elements can cause the heating elements to become damaged and consequently no longer work; control cabinet for the electric heaters available (temperature of the double jacket can be regulated via the control cabinet); 2 ball valves for the heating jacket are included in the scope of delivery; Contrary to what is stated in the drawing, the tank is not polished on the inside
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
First Agitator
power
0.37 KW
output speed
0 - 1400 rpm
agitator
propeller
voltage
230/400 Volt
agitator positioning
eccentrically in the upper bottom
