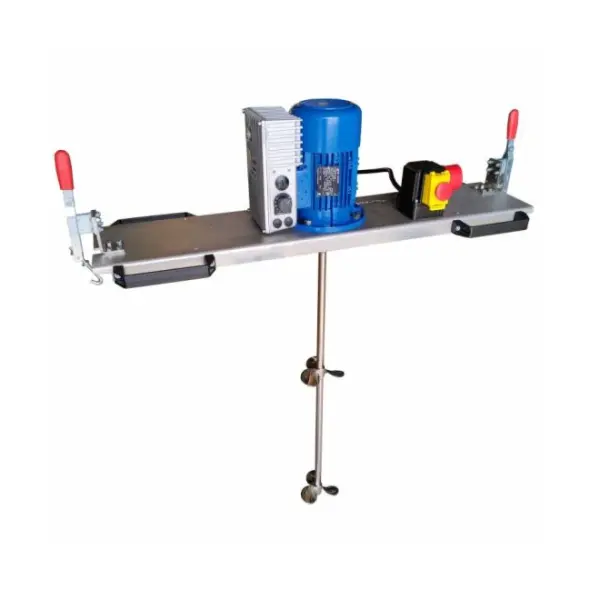

IBC agitator / high-speed container mixer with double propeller stirrer at variable speed
€2,580.00
incl. VAT
€3,070.20
packaging costs:
€85.00
Price per piece, excl. VAT
1 on Stock
General Information
location
Bremen
condition
brand new
Other
- High-speed mixer with firm, removable agitator-shaft (coupling)
- 3-blade propeller Ø138mm at the bottom of the shaft (unscrewable)
- Additional 3-blade propeller Ø138mm mounted on the shaft (height adjustable)
- Propeller mirror polished, made of one piece
- Output: 0,75 kw
- Engine speed: 0-1410 rpm (variable)
- Voltage: 3PH 400V 50Hz IE2
- Compact frequency inverter IP 55 NORD: release switch and potentiometer for stepless engine speed regulation (0-50 Hz) 0-1410 rpm
- Material in contact with medium: AISI 316 (1.4404)
- Agitator weight: ca. 17 kg
- Stainless steel traverse AISI 304 (1.4301), 4mm strength, with 2 tenterhooks and 4 side-mounted carrying handles
- Suitable for IBC-1000 liter
- CEE-plug switch on the traverse with no-voltage release and phase inverter
Agitators
Technical documentation
drawing,assembly instruction
agitator
propeller
output speed
0-1410 rpm
power
0,75 KW
nameplate
max. viscosity
600 mPas
blade diameter
138 mm
