10848

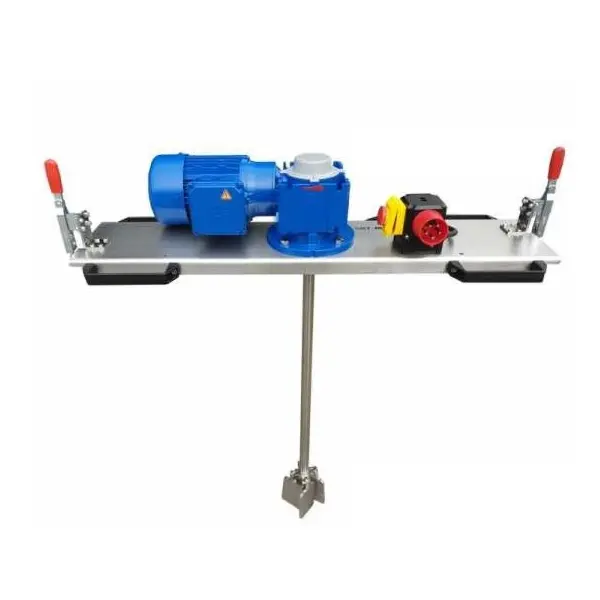

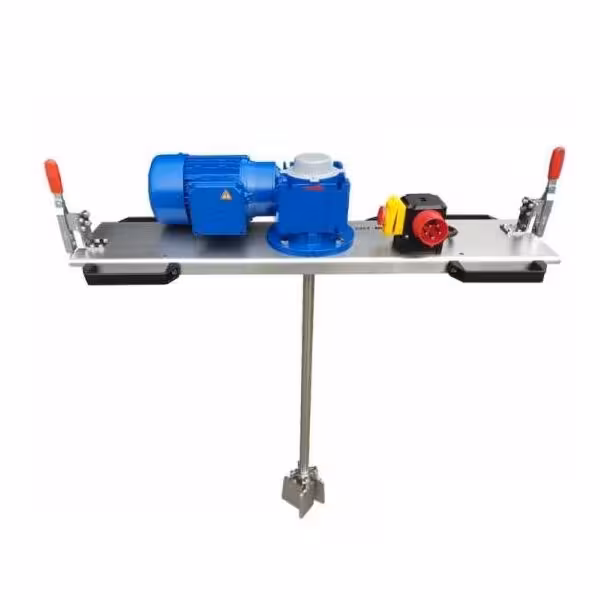

IBC agitator / worm-gear container mixer with foldable crossblade stirrer
€2,490.00
incl. VAT
€2,963.10
packaging costs:
€85.00
Price per piece, excl. VAT
DELIVERY TIME:
ON REQUEST
ON REQUEST
Unterlagen vorhanden
General Information
location
Bremen
condition
brand new
Other
- Motor and gear in latest aluminium technology, made by Getriebebau NORD
- Powerful, massive agitator shaft mounted in hollow shaft gearbox
- 4-blade-folding stirrer Ø340mm (8mm strength)
- Stirrer blades can be removed without any tools for easy cleaning, no screws in the container
- Output: 0,75 kw
- Engine speed: 190 rpm
- Voltage: 3PH 400V 50Hz IE3 with 3 thermistors (PTC)
- Material in contact with medium: AISI 316
- Agitator weight: ca. 19 kg
- Stainless steel traverse AISI 304 (1.4301), 4mm strength, with 2 tenterhooks and 2 carrying handles
- Suitable for IBC-1000 liter
- CEE-plug switch on the traverse with no-voltage release and phase inverter
- Folding stirrer insertable through container opening Ø140mm
Agitators
Technical documentation
drawing,assembly instruction
agitator
crossarm stirrer
output speed
190 rpm
voltage
400 Volt
power
0,75 KW
nameplate
max. viscosity
2.000 mPas
blade diameter
340 mm
