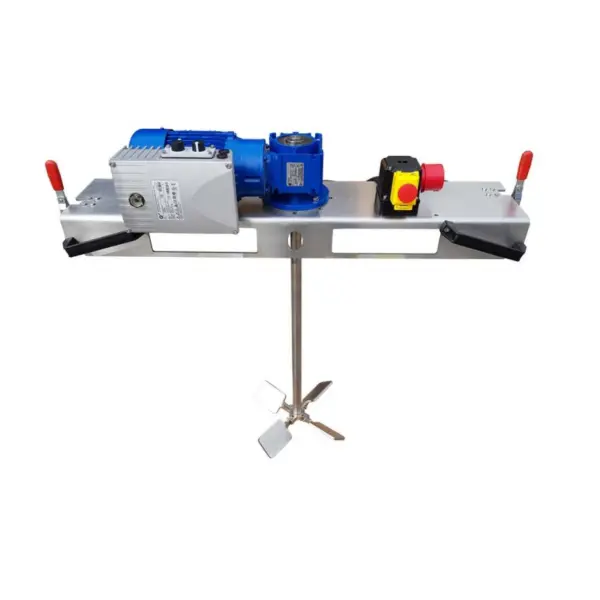

IBC agitator / worm-gear container mixer with foldable crossblade stirrer at variable speed (forklift version)
€3,580.00
incl. VAT
€4,260.20
packaging costs:
€85.00
Price per piece, excl. VAT
DELIVERY TIME:
ON REQUEST
ON REQUEST
Unterlagen vorhanden
General Information
location
Bremen
condition
brand new
Other
- Motor and gear unit in latest aluminium technology, manufactured by Getriebebau NORD
- Solid plug-in agitator shaft mounted in the hollow shaft gear unit
- 4-blade folding propeller Ø=340mm screwed in at the end of the agitator shaft
- Stirring blades can be removed without tools for easy cleaning. No screws in the product space
- Power: 0,75 kW
- Speed: 0-190 rpm
- Voltage: 3PH 400V 50Hz. IE2
- Compact frequency inverter IP 55 NORD Input 3 PH 400 V 50 Hz. Potentiometer for variable speed control. 0,75 KW 0-190 (0-50 Hz) rpm.
- Material in contact with medium: AISI 316
- Agitator weight: ca. 20 kg
- Stainless steel traverse AISI 304 (1.4301), 4mm strength, with 2 tenterhooks and two holes for forklift forks
- Suitable for IBC-1000 liter
- CEE-plug switch on the traverse with no-voltage release and phase inverter
Agitators
Technical documentation
drawing,assembly instruction
agitator
crossarm stirrer
output speed
0-190 rpm
voltage
400 Volt
power
0,75 KW
max. viscosity
2.000 mPas
blade diameter
340 mm
