15874

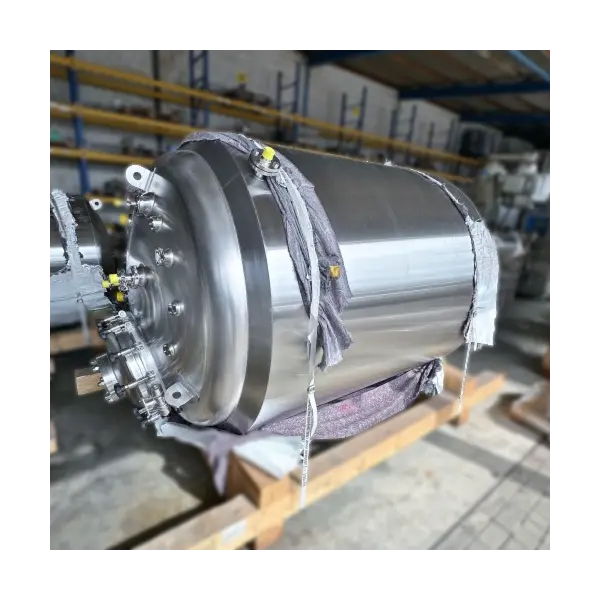

Unused 4000 liter heat-/ coolable pressure tank, Aisi 316
€45,000.00
incl. VAT
€53,550.00
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
location
Bremen
condition
unused
Vessel
Manufacturer
Hinke
volume
4.000 liter
max. allowable working temperature
150 °C
max. excess pressure
6,0 bar
vacuum
1,0 bar
specific weight of the medium
1.2 (to/m³)
lower bottom
torispherical bottom
upper bottom
torispherical bottom
construction
standing
stand type
legs
quantity legs
3 Piece
double jacket
double jacket
available
Volume double jacket
184,0 liter
max. allowable working overpressure (dj)
6.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
150 °C
Temperature control cylinder (dj)
half-coil
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
mineral wool
material insulation jacket
stainless steel
insulation thickness
60 mm
Technical Characteristics
ground clearance
420 mm
diameter inside
1.600 mm
diameter outside
1.830 mm
cylindrical height
1.930 mm
total height
3.695 mm
Wall thickness lower bottom
10 mm
wall thickness cylinder
6 mm
wall thickness of upper bottom
15 mm
year of construction
2018
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents,certificate of inspection,CE label and declaration of conformity,operation manual
manhole
in the upper bottom (Ø 600)
nameplate
technical equipment
spray ball, crane eyes
outlet
available
remarks
Full set of pharma-compliant technical documentation included in delivery; tank was manufactured for a global pharmaceutical company but was never put into operation; hand hole with sight glass diameter: 150mm; incl. Südmo single-seat valve SVP (outlet)
Material Composition
material in contact w/ medium
AISI316L 1.4435
