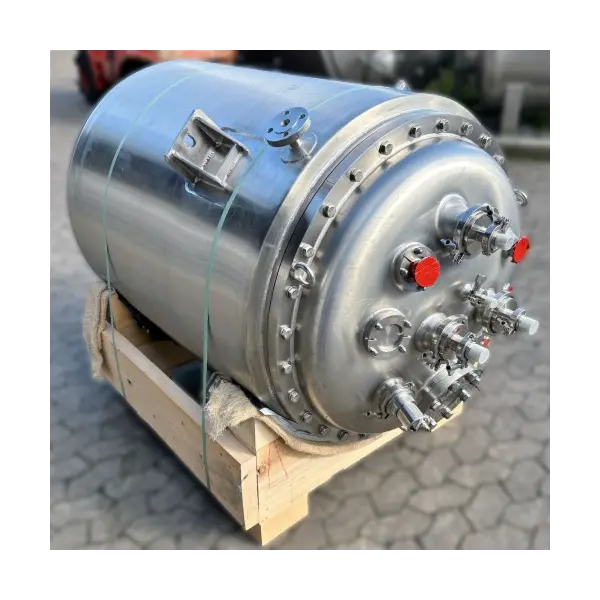

Unused 500 liter heat-/ coolable pressure tank, Aisi 904L
€17,900.00
incl. VAT
€21,301.00
Price per piece, excl. VAT
2 pieces on stock
Unterlagen vorhanden
General Information
location
Bremen
condition
unused
Vessel
Manufacturer
Kasag
volume
500 liter
max. allowable working temperature
150 °C
max. excess pressure
6,0 bar
vacuum
1,0 bar
specific weight of the medium
1.2 (to/m³)
bottom
torispherical bottom
upper bottom
screwed cover
construction
hanging
stand type
bracket
double jacket
double jacket
available
Volume double jacket
28,0 liter
max. allowable working overpressure (dj)
10.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
150 °C
Temperature control cylinder (dj)
half-coil
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
mineral wool
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
800 mm
diameter outside
980 mm
cylindrical height
1.044 mm
Wall thickness lower bottom
3.5 mm
wall thickness cylinder
6 mm
wall thickness of upper bottom
4 mm
year of construction
2017
Equipment
Technical documentation
drawing,various documents ,certificate of inspection,CE label and declaration of conformity
manhole
handhole
nameplate
technical equipment
spray ball, crane eyes
outlet
available
remarks
Tank was manufactured for a global pharmaceutical company but was never put into operation; hand hole with sight glass diameter: 220mm; incl. Südmo single-seat valve SVP (outlet)
Material Composition
material in contact w/ medium
AISI316 / AISI904L 1.4539
