15887

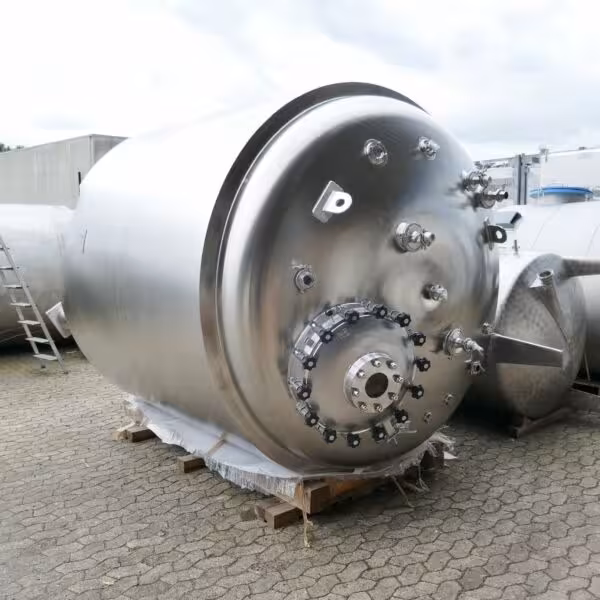

Unused 8890 Liter heat-/coolable pressure tank, Aisi 904L
€54,000.00
incl. VAT
€64,260.00
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
location
Bremen
condition
unused
Vessel
volume
8.890 liter
max. allowable working temperature
150 °C
max. excess pressure
6,0 bar
vacuum
1,0 bar
construction
standing
stand type
legs
quantity legs
3 Piece
double jacket
double jacket
available
Volume double jacket
143,0 liter
max. allowable working overpressure (dj)
10.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
150 °C
Temperature control cylinder (dj)
half-coil
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
mineral wool
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
2.200 mm
diameter outside
2.400 mm
total height
4.000 mm
Wall thickness lower bottom
9.5 mm
wall thickness cylinder
7.6 mm
wall thickness of upper bottom
12.5 mm
year of construction
2018
Equipment
Technical documentation
drawing,various documents
manhole
in the upper bottom (Ø 600)
nameplate
technical equipment
spray ball, crane eyes
remarks
Tank was manufactured for a global pharmaceutical company but was never put into operation; Diameter of outlet (fitting) approx. 44 mm
Material Composition
material in contact w/ medium
AISI316 / AISI904L 1.4539
material temperatur control system
AISI 316 (V4A) 1.4571
material legs
stainless steel
